21.1 Overview

SpotOptim supports multi-objective optimization functions with automatic detection and flexible scalarization strategies. The parameter fun_mo2so can be used to convert multi-objective values to single-objective values. If the function fun returns several objective function values, say \(f_1, f_2, \ldots, f_p\), these values are stored in y_mo and can be be used by fun_mo2so. The fun_mo2so parameter is optional. If it is None, which is the default, only the first objective \(f_1\) is used as single-objective and the remaining objectives \(f_2, \ldots, f_p\) are stored in y_mo, but not further used in the optimization process.

Notefun_mo2so

• fun_mo2so (callable, optional): Function to convert multi-objective values to single-objective
  • Takes array of shape (n_samples, n_objectives)
  • Returns array of shape (n_samples,)
  • If None, uses first objective (default behavior)

NoteAttributes

• y_mo (ndarray or None): Stores all multi-objective function values
  • Shape: (n_samples, n_objectives) for multi-objective problems
  • None for single-objective problems

NoteMethods

• _get_shape(y): Get shape of objective function output
• _store_mo(y_mo): Store multi-objective values with automatic appending
• _mo2so(y_mo): Convert multi-objective to single-objective values

SpotOptim’s method _evaluate_function(X) automatically detects multi-objective functions. It calls _mo2so() to convert multi-objective to single-objective. It also stores the original multi-objective values in y_mo. And it returns single-objective values for optimization.

Example 21.2 (Default Behavior (Use First Objective))

Example 21.1

import numpy as np
from spotoptim import SpotOptim

def bi_objective(X):
    """Two conflicting objectives."""
    obj1 = np.sum(X**2, axis=1)          # Minimize at origin
    obj2 = np.sum((X - 2)**2, axis=1)    # Minimize at (2, 2)
    return np.column_stack([obj1, obj2])

optimizer = SpotOptim(
    fun=bi_objective,
    bounds=[(-5, 5), (-5, 5)],
    max_iter=30,
    n_initial=15,
    seed=42,
    max_surrogate_points=30
)

result = optimizer.optimize()

print(f"Best x: {result.x}")                    # Near [0, 0]
print(f"Best f(x): {result.fun}")               # Minimizes obj1
print(f"MO values stored: {optimizer.y_mo.shape}")  # (30, 2)

Best x: [4.04962380e-05 3.18844384e-03]
Best f(x): 1.0167814038111828e-05
MO values stored: (30, 2)

Example 21.4 (Weighted Sum Scalarization)

Example 21.3

def weighted_sum(y_mo):
    """Equal weighting of objectives."""
    return 0.5 * y_mo[:, 0] + 0.5 * y_mo[:, 1]

optimizer = SpotOptim(
    fun=bi_objective,
    bounds=[(-5, 5), (-5, 5)],
    max_iter=30,
    n_initial=15,
    fun_mo2so=weighted_sum,  # Custom conversion
    seed=42,
    max_surrogate_points=30
)

result = optimizer.optimize()
print(f"Compromise solution: {result.x}")  # Near [1, 1]

Compromise solution: [1.00115038 1.00235932]

Example 21.6 (Min-Max Scalarization)

Example 21.5

def min_max(y_mo):
    """Minimize the maximum objective."""
    return np.max(y_mo, axis=1)

optimizer = SpotOptim(
    fun=bi_objective,
    bounds=[(-5, 5), (-5, 5)],
    max_iter=30,
    n_initial=15,
    fun_mo2so=min_max,
    seed=42,
    max_surrogate_points=30
)

result = optimizer.optimize()
# Finds solution with balanced objective values

Example 21.8 (Three or More Objectives)

Example 21.7

def three_objectives(X):
    """Three different norms."""
    obj1 = np.sum(X**2, axis=1)           # L2 norm
    obj2 = np.sum(np.abs(X), axis=1)      # L1 norm
    obj3 = np.max(np.abs(X), axis=1)      # L-infinity norm
    return np.column_stack([obj1, obj2, obj3])

def custom_scalarization(y_mo):
    """Weighted combination."""
    return 0.4 * y_mo[:, 0] + 0.3 * y_mo[:, 1] + 0.3 * y_mo[:, 2]

optimizer = SpotOptim(
    fun=three_objectives,
    bounds=[(-5, 5), (-5, 5), (-5, 5)],
    max_iter=35,
    n_initial=20,
    fun_mo2so=custom_scalarization,
    seed=42,
    max_surrogate_points=30
)

result = optimizer.optimize()

Example 21.10 (Noise Handling)

Example 21.9

def noisy_bi_objective(X):
    """Noisy multi-objective function."""
    noise1 = np.random.normal(0, 0.05, X.shape[0])
    noise2 = np.random.normal(0, 0.05, X.shape[0])

    obj1 = np.sum(X**2, axis=1) + noise1
    obj2 = np.sum((X - 1)**2, axis=1) + noise2
    return np.column_stack([obj1, obj2])

optimizer = SpotOptim(
    fun=noisy_bi_objective,
    bounds=[(-5, 5), (-5, 5)],
    max_iter=40,
    n_initial=10,
    repeats_initial=3,      # Handle noise
    repeats_surrogate=2,
    seed=42,
    max_surrogate_points=30
)

result = optimizer.optimize()
# Works seamlessly with noise handling

21.2 Common Scalarization Strategies

21.2.1 1. Weighted Sum

def weighted_sum(y_mo, weights=[0.5, 0.5]):
    return sum(w * y_mo[:, i] for i, w in enumerate(weights))

Use when: Objectives have similar scales and you want linear trade-offs

21.2.2 2. Weighted Sum with Normalization

def normalized_weighted_sum(y_mo, weights=[0.5, 0.5]):
    # Normalize each objective to [0, 1]
    y_norm = (y_mo - y_mo.min(axis=0)) / (y_mo.max(axis=0) - y_mo.min(axis=0) + 1e-10)
    return sum(w * y_norm[:, i] for i, w in enumerate(weights))

Use when: Objectives have very different scales

21.2.3 3. Min-Max (Chebyshev)

def min_max(y_mo):
    return np.max(y_mo, axis=1)

Use when: You want balanced performance across all objectives

21.2.4 4. Target Achievement

def target_achievement(y_mo, targets=[0.0, 0.0]):
    # Minimize deviation from targets
    return np.sum((y_mo - targets)**2, axis=1)

Use when: You have specific target values for each objective

21.2.5 5. Product

def product(y_mo):
    return np.prod(y_mo + 1e-10, axis=1)  # Add small value to avoid zero

Use when: All objectives should be minimized together

21.3 Integration with Other Features

Multi-objective support works seamlessly with:

✅ Noise Handling - Use repeats_initial and repeats_surrogate
✅ OCBA - Use ocba_delta for intelligent re-evaluation
✅ TensorBoard Logging - Logs converted single-objective values
✅ Dimension Reduction - Fixed dimensions work normally
✅ Custom Variable Names - var_name parameter supported

21.4 Implementation Details

21.4.1 Automatic Detection

SpotOptim automatically detects multi-objective functions:

• If function returns 2D array (n_samples, n_objectives), it’s multi-objective
• If function returns 1D array (n_samples,), it’s single-objective

21.4.2 Data Flow

User Function → y_mo (raw) → _mo2so() → y_ (single-objective)
                    ↓
               y_mo (stored)

1. Function returns multi-objective values
2. _store_mo() saves them in y_mo attribute
3. _mo2so() converts to single-objective using fun_mo2so or default
4. Surrogate model optimizes the single-objective values
5. All original multi-objective values remain accessible in y_mo

21.4.3 Backward Compatibility

✅ Fully backward compatible:

• Single-objective functions work unchanged
• fun_mo2so defaults to None
• y_mo is None for single-objective problems
• No breaking changes to existing code

21.5 Limitations and Notes

21.5.1 What This Is

• ✅ Scalarization approach to multi-objective optimization
• ✅ Single solution found per optimization run
• ✅ Different scalarizations → different Pareto solutions
• ✅ Suitable for preference-based multi-objective optimization

21.5.2 What This Is Not

• ❌ Not a true multi-objective optimizer (doesn’t find Pareto front)
• ❌ Doesn’t generate multiple solutions in one run
• ❌ Not suitable for discovering entire Pareto front

21.5.3 For True Multi-Objective Optimization

For finding the complete Pareto front, consider specialized tools:

• pymoo: Comprehensive multi-objective optimization framework
• platypus: Multi-objective optimization library
• NSGA-II, MOEA/D: Dedicated multi-objective algorithms

21.6 Benchmark Multi-Objective Test Functions

SpotOptim includes 12 multi-objective benchmark functions in spotoptim.function.mo. These functions are widely used to evaluate and compare multi-objective optimization algorithms.

21.6.1 Function Overview

Function	Objectives	Variables	Pareto Front	Characteristics
ZDT1	2	30	Convex	Unimodal, minimization
ZDT2	2	30	Non-convex	Unimodal, minimization
ZDT3	2	30	Disconnected	Multimodal, minimization
ZDT4	2	10	Convex	Many local fronts
ZDT6	2	10	Non-convex	Non-uniform density
DTLZ1	Scalable	n_obj+4	Linear	Multimodal
DTLZ2	Scalable	n_obj+9	Spherical	Unimodal
Schaffer N1	2	1	Convex	Simple, minimization
Fonseca-Fleming	2	2-10	Concave	Symmetric, minimization
mo_conv2_min	2	2	Convex	Convex, minimization
mo_conv2_max	2	2	Convex	Convex, maximization
Kursawe	2	3	Disconnected	Non-convex, disconnected minimization

mo_conv2_min is a smooth convex minimization pair with objectives \(f_1(x, y) = x^2 + y^2\) and \(f_2(x, y) = (x - 1)^2 + (y - 1)^2\) on \([0, 1]^2\), producing a convex quadratic Pareto front along \(x = y\). mo_conv2_max flips both objectives for maximization via \(f_1(x, y) = 2 - (x^2 + y^2)\) and \(f_2(x, y) = 2 - ((1 - x)^2 + (1 - y)^2)\), keeping objective values bounded in \([0, 2]\).

21.6.2 Example 6: ZDT1 - Convex Pareto Front

ZDT1 is a classical bi-objective test problem with a convex Pareto front, widely used for benchmarking.

import numpy as np
import matplotlib.pyplot as plt
from spotoptim.function.mo import zdt1
from spotoptim import SpotOptim

# Generate data for visualization
n_points = 100
x1_range = np.linspace(0, 1, n_points)

# Pareto front: x1 in [0,1], rest = 0
X_pareto = np.column_stack([x1_range, np.zeros((n_points, 2))])
y_pareto = zdt1(X_pareto)

# Non-optimal points for comparison
X_non_optimal = np.random.rand(200, 3)
y_non_optimal = zdt1(X_non_optimal)

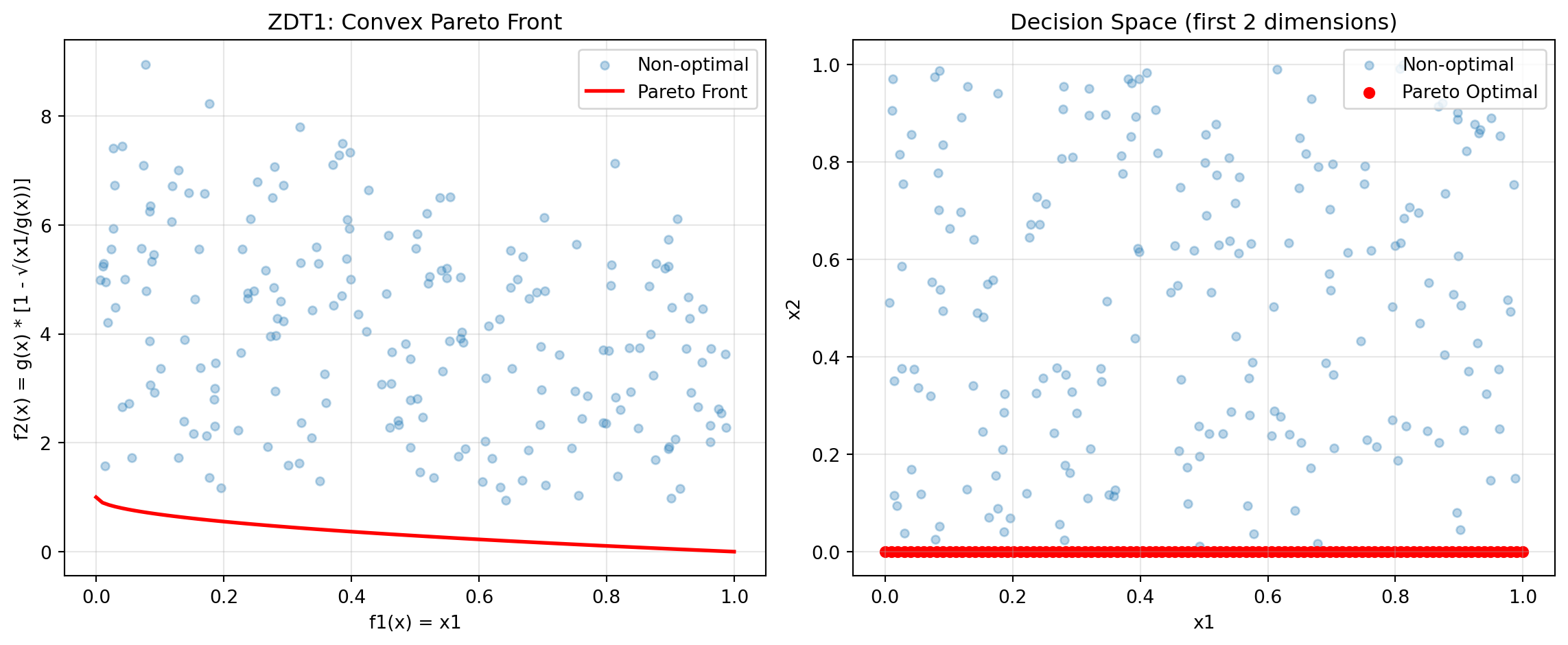

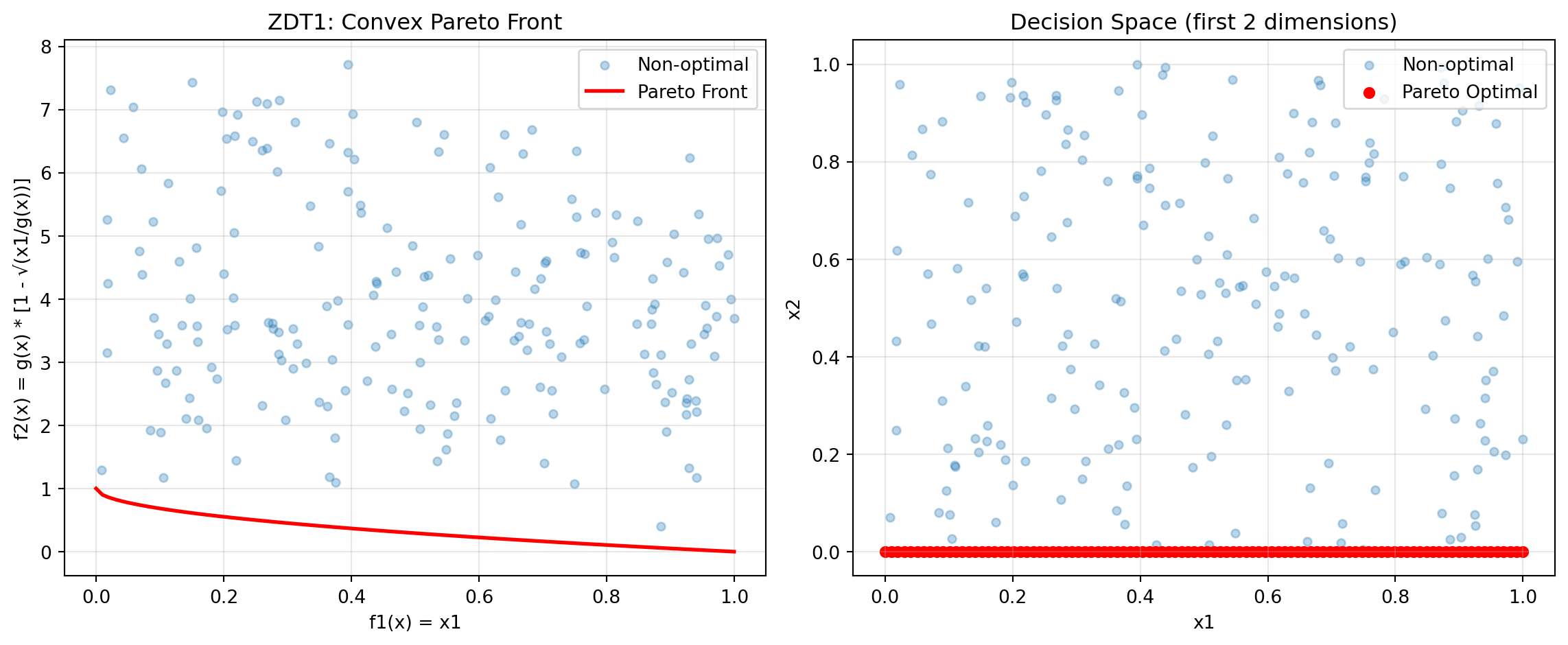

Figure 21.1 visualizes the Pareto front:

fig, (ax1, ax2) = plt.subplots(1, 2, figsize=(12, 5))

# Plot objective space
ax1.scatter(y_non_optimal[:, 0], y_non_optimal[:, 1],
           alpha=0.3, label='Non-optimal', s=20)
ax1.plot(y_pareto[:, 0], y_pareto[:, 1],
        'r-', linewidth=2, label='Pareto Front')
ax1.set_xlabel('f1(x) = x1')
ax1.set_ylabel('f2(x) = g(x) * [1 - √(x1/g(x))]')
ax1.set_title('ZDT1: Convex Pareto Front')
ax1.legend()
ax1.grid(True, alpha=0.3)

# Plot decision space (first two variables)
ax2.scatter(X_non_optimal[:, 0], X_non_optimal[:, 1],
           alpha=0.3, label='Non-optimal', s=20)
ax2.scatter(X_pareto[:, 0], X_pareto[:, 1],
           c='red', label='Pareto Optimal', s=30)
ax2.set_xlabel('x1')
ax2.set_ylabel('x2')
ax2.set_title('Decision Space (first 2 dimensions)')
ax2.legend()
ax2.grid(True, alpha=0.3)

plt.tight_layout()
plt.show()

Figure 21.1: ZDT1 Convex Pareto Front

print("ZDT1 Characteristics:")
print("- Convex Pareto front: f2 = 1 - √f1")
print("- Optimal when x2, x3, ..., xn = 0")
print("- Easy to solve, good for testing basic functionality")

ZDT1 Characteristics:
- Convex Pareto front: f2 = 1 - √f1
- Optimal when x2, x3, ..., xn = 0
- Easy to solve, good for testing basic functionality

Now optimize using SpotOptim with weighted sum:

def weighted_sum_zdt1(y_mo):
    """Equal weighting for ZDT1."""
    return 0.5 * y_mo[:, 0] + 0.5 * y_mo[:, 1]

optimizer = SpotOptim(
    fun=zdt1,
    bounds=[(0, 1)] * 30,  # 30 variables in [0, 1]
    max_iter=50,
    n_initial=20,
    fun_mo2so=weighted_sum_zdt1,
    seed=42,
    max_surrogate_points=30
)

result = optimizer.optimize()

print(f"\nOptimization Result:")
print(f"Best x (first 5 dims): {result.x[:5]}")
print(f"Best scalarized value: {result.fun:.6f}")

# Evaluate multi-objective values
y_best = zdt1(result.x.reshape(1, -1))
print(f"f1 = {y_best[0, 0]:.6f}, f2 = {y_best[0, 1]:.6f}")

Optimization Result:
Best x (first 5 dims): [1. 0. 0. 0. 0.]
Best scalarized value: 0.500000
f1 = 1.000000, f2 = 0.000000

21.6.3 Example 7: ZDT2 - Non-Convex Pareto Front

ZDT2 has a non-convex Pareto front, making it more challenging than ZDT1.

from spotoptim.function.mo import zdt2

# Generate Pareto front
X_pareto = np.column_stack([x1_range, np.zeros((n_points, 2))])
y_pareto = zdt2(X_pareto)

# Non-optimal points
y_non_optimal = zdt2(X_non_optimal)

Figure 21.2 visualizes the Pareto front:

fig, ax = plt.subplots(figsize=(8, 6))
ax.scatter(y_non_optimal[:, 0], y_non_optimal[:, 1],
          alpha=0.3, label='Non-optimal', s=20)
ax.plot(y_pareto[:, 0], y_pareto[:, 1],
       'r-', linewidth=2, label='Pareto Front')
ax.set_xlabel('f1(x) = x1')
ax.set_ylabel('f2(x) = g(x) * [1 - (x1/g(x))²]')
ax.set_title('ZDT2: Non-Convex Pareto Front')
ax.legend()
ax.grid(True, alpha=0.3)
plt.tight_layout()
plt.show()

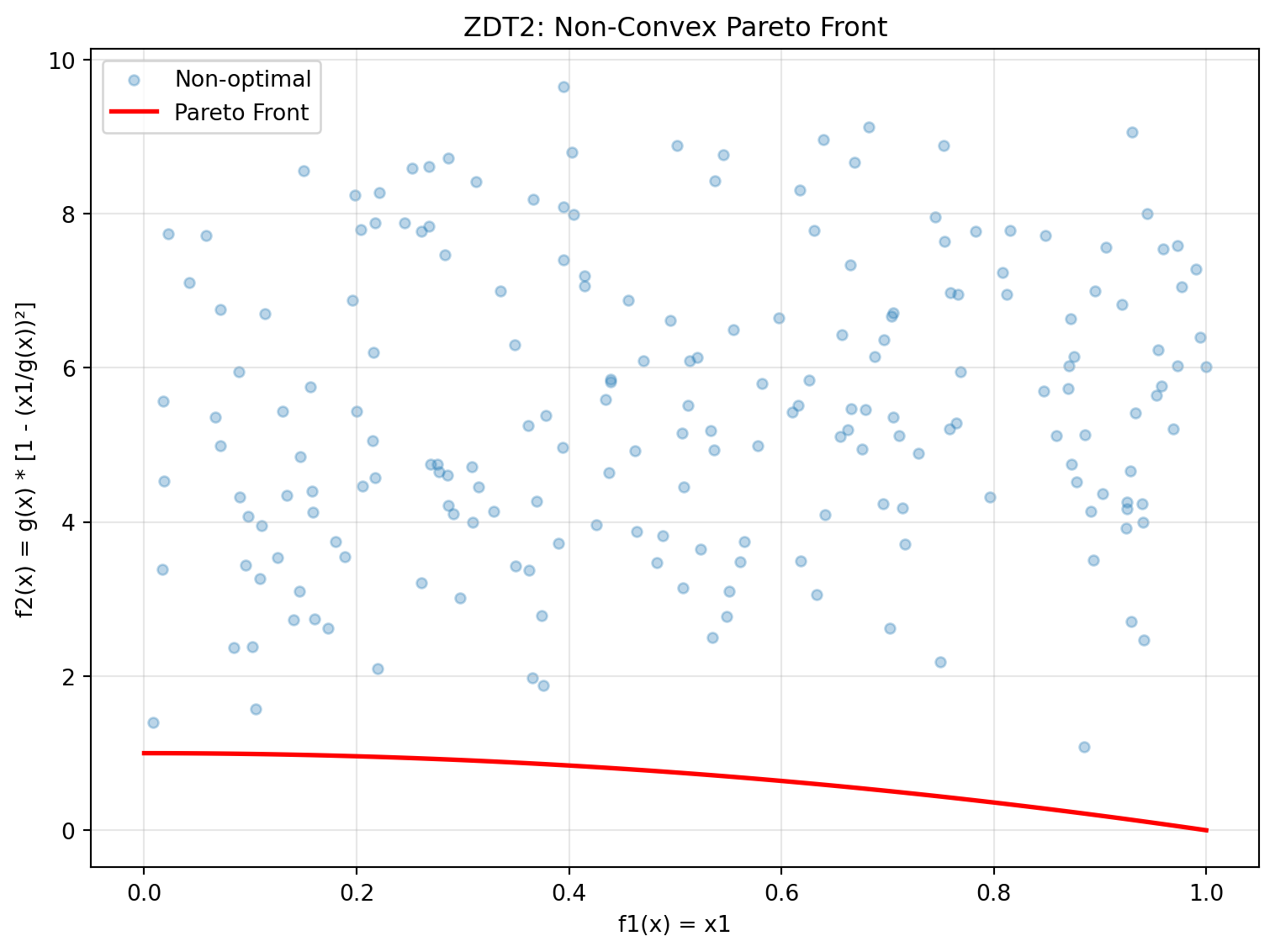

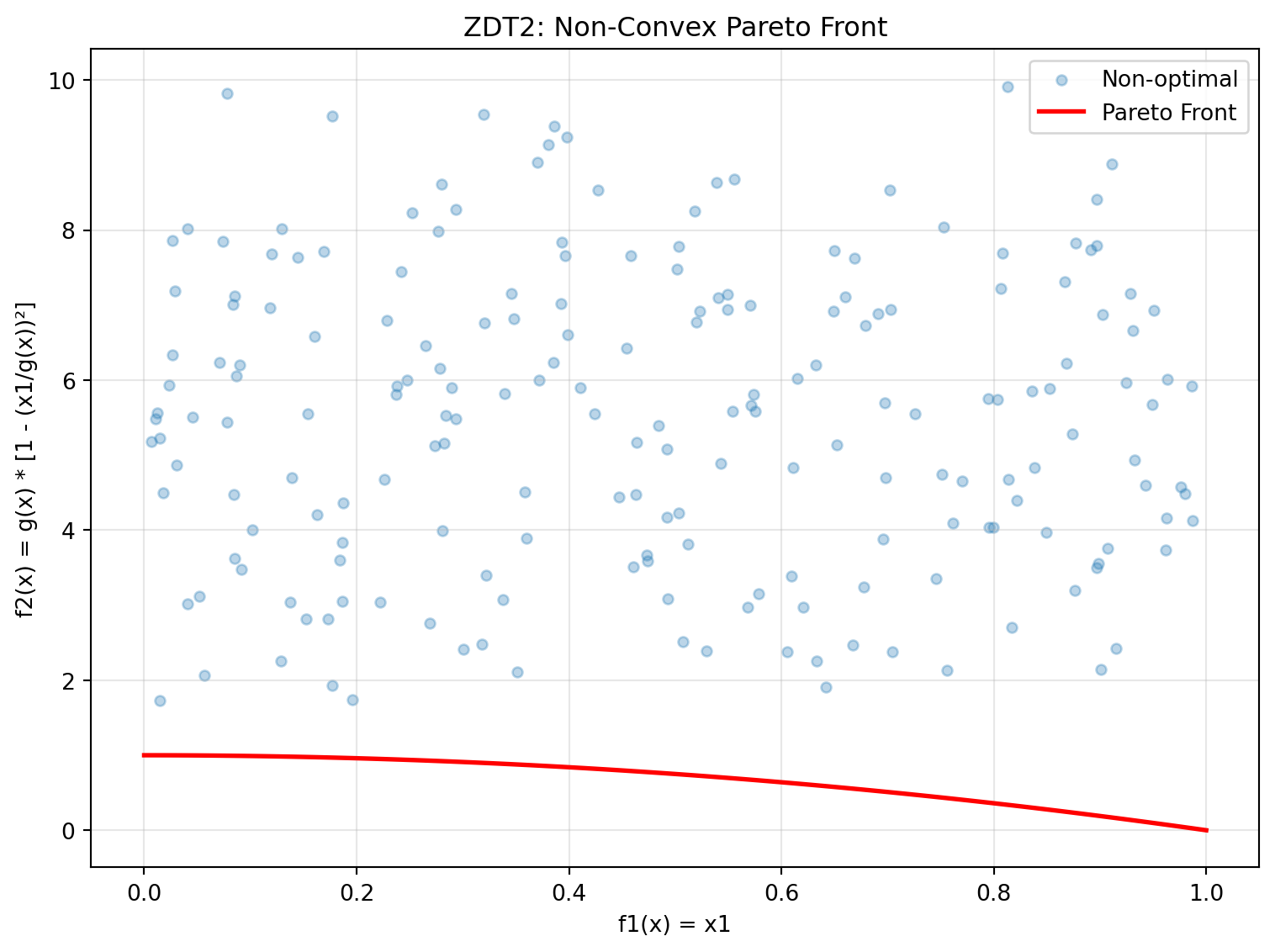

Figure 21.2: ZDT2 Non-Convex Pareto Front

print("ZDT2 Characteristics:")
print("- Non-convex Pareto front: f2 = 1 - f1²")
print("- Tests algorithm's ability to handle non-convexity")
print("- Optimal when x2, x3, ..., xn = 0")

ZDT2 Characteristics:
- Non-convex Pareto front: f2 = 1 - f1²
- Tests algorithm's ability to handle non-convexity
- Optimal when x2, x3, ..., xn = 0

21.6.4 Example 8: ZDT3 - Disconnected Pareto Front

ZDT3 has a discontinuous Pareto front consisting of 5 separate regions.

from spotoptim.function.mo import zdt3

# Generate Pareto front
X_pareto = np.column_stack([x1_range, np.zeros((n_points, 2))])
y_pareto = zdt3(X_pareto)

# Non-optimal points
y_non_optimal = zdt3(X_non_optimal)

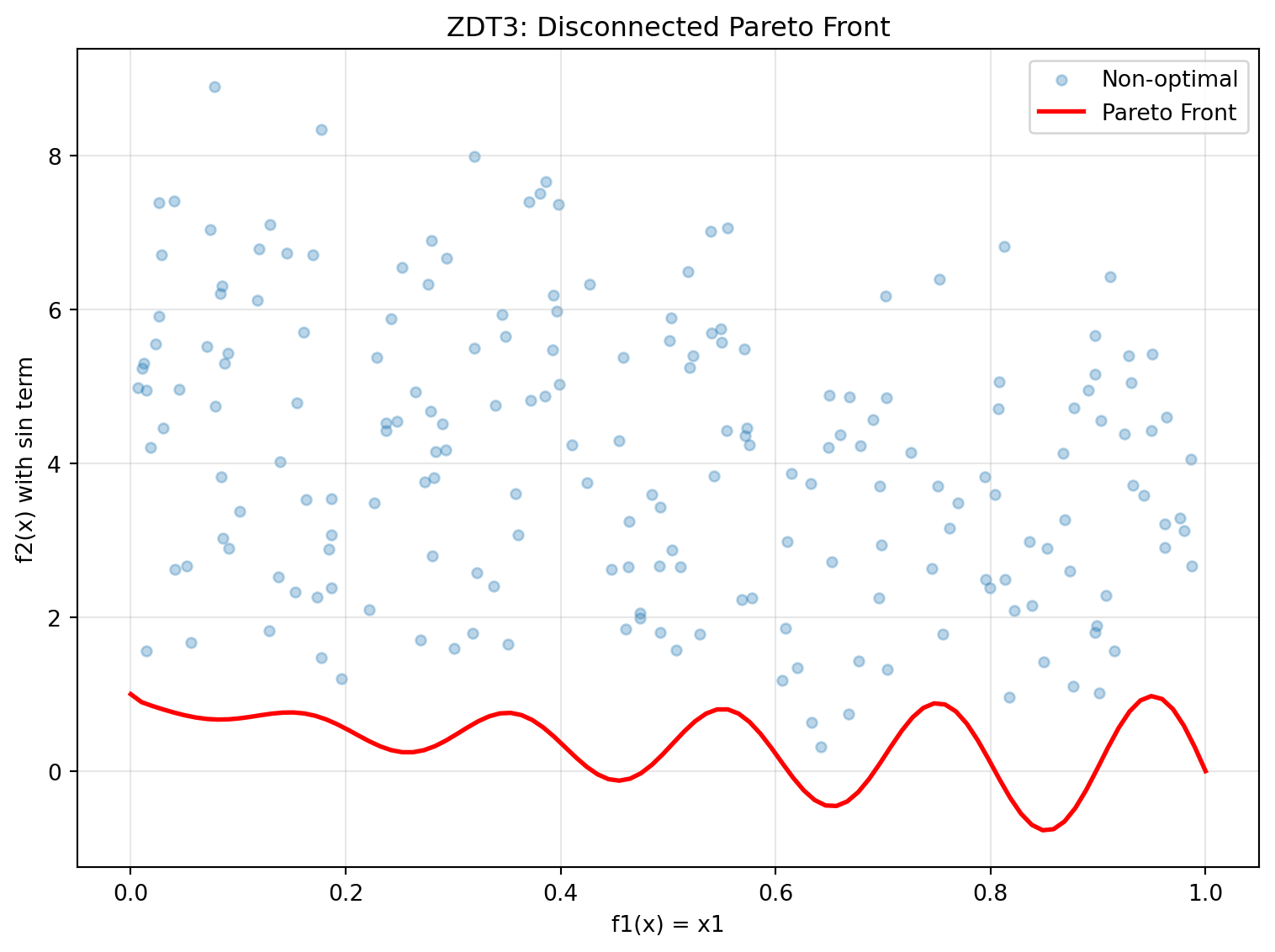

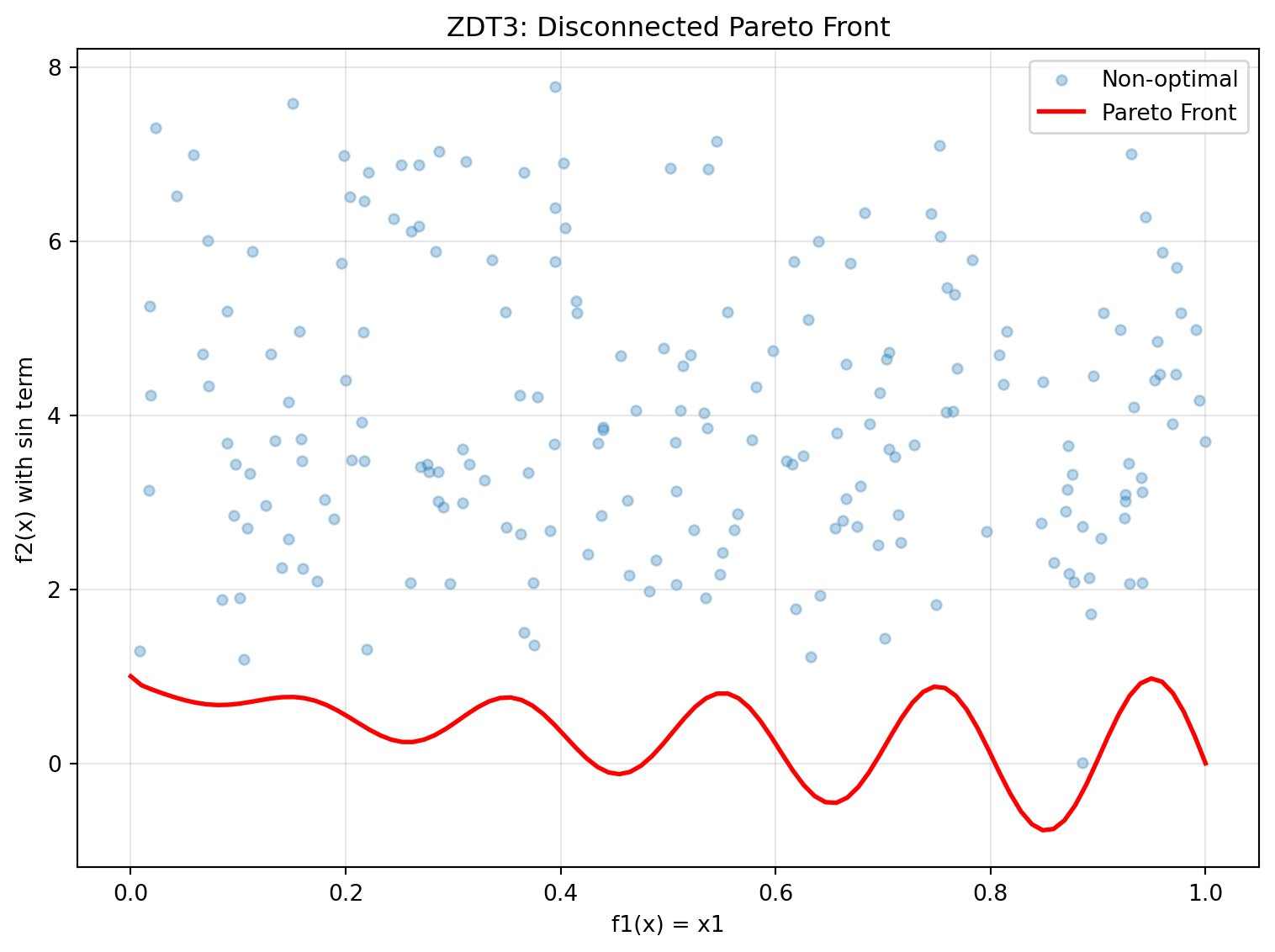

Figure 21.3 visualizes the Pareto front:

fig, ax = plt.subplots(figsize=(8, 6))
ax.scatter(y_non_optimal[:, 0], y_non_optimal[:, 1],
          alpha=0.3, label='Non-optimal', s=20)
ax.plot(y_pareto[:, 0], y_pareto[:, 1],
       'r-', linewidth=2, label='Pareto Front')
ax.set_xlabel('f1(x) = x1')
ax.set_ylabel('f2(x) with sin term')
ax.set_title('ZDT3: Disconnected Pareto Front')
ax.legend()
ax.grid(True, alpha=0.3)
plt.tight_layout()
plt.show()

Figure 21.3: ZDT3 Disconnected Pareto Front

print("ZDT3 Characteristics:")
print("- Disconnected Pareto front with 5 separate regions")
print("- Tests diversity maintenance in algorithms")
print("- sin(10πx1) term creates discontinuities")

ZDT3 Characteristics:
- Disconnected Pareto front with 5 separate regions
- Tests diversity maintenance in algorithms
- sin(10πx1) term creates discontinuities

21.6.5 Example 9: ZDT4 - Multimodal with Many Local Fronts

ZDT4 has 21^9 local Pareto fronts, testing the algorithm’s ability to escape local optima.

from spotoptim.function.mo import zdt4

# Generate Pareto front (same as ZDT1 when optimal)
X_pareto = np.column_stack([x1_range, np.zeros((n_points, 9))])
y_pareto = zdt4(X_pareto)

# Non-optimal points with multimodal g-function
X_non_optimal_zdt4 = np.random.rand(200, 10)
X_non_optimal_zdt4[:, 0] = np.clip(X_non_optimal_zdt4[:, 0], 0, 1)  # x1 in [0,1]
X_non_optimal_zdt4[:, 1:] = X_non_optimal_zdt4[:, 1:] * 10 - 5  # others in [-5,5]
y_non_optimal = zdt4(X_non_optimal_zdt4)

Figure 21.4 visualizes the Pareto front:

fig, (ax1, ax2) = plt.subplots(1, 2, figsize=(12, 5))

# Objective space
ax1.scatter(y_non_optimal[:, 0], y_non_optimal[:, 1],
           alpha=0.3, label='Non-optimal', s=20)
ax1.plot(y_pareto[:, 0], y_pareto[:, 1],
        'r-', linewidth=2, label='Pareto Front')
ax1.set_xlabel('f1(x) = x1')
ax1.set_ylabel('f2(x)')
ax1.set_title('ZDT4: Multimodal - Objective Space')
ax1.legend()
ax1.grid(True, alpha=0.3)

# Show multimodal landscape for x2
x2_range = np.linspace(-5, 5, 100)
g_vals = 1 + 10 * 9 + (x2_range**2 - 10 * np.cos(4 * np.pi * x2_range)) * 9
ax2.plot(x2_range, g_vals)
ax2.set_xlabel('x2 (or x3, ..., x10)')
ax2.set_ylabel('Contribution to g(x)')
ax2.set_title('Multimodal Landscape')
ax2.grid(True, alpha=0.3)

plt.tight_layout()
plt.show()

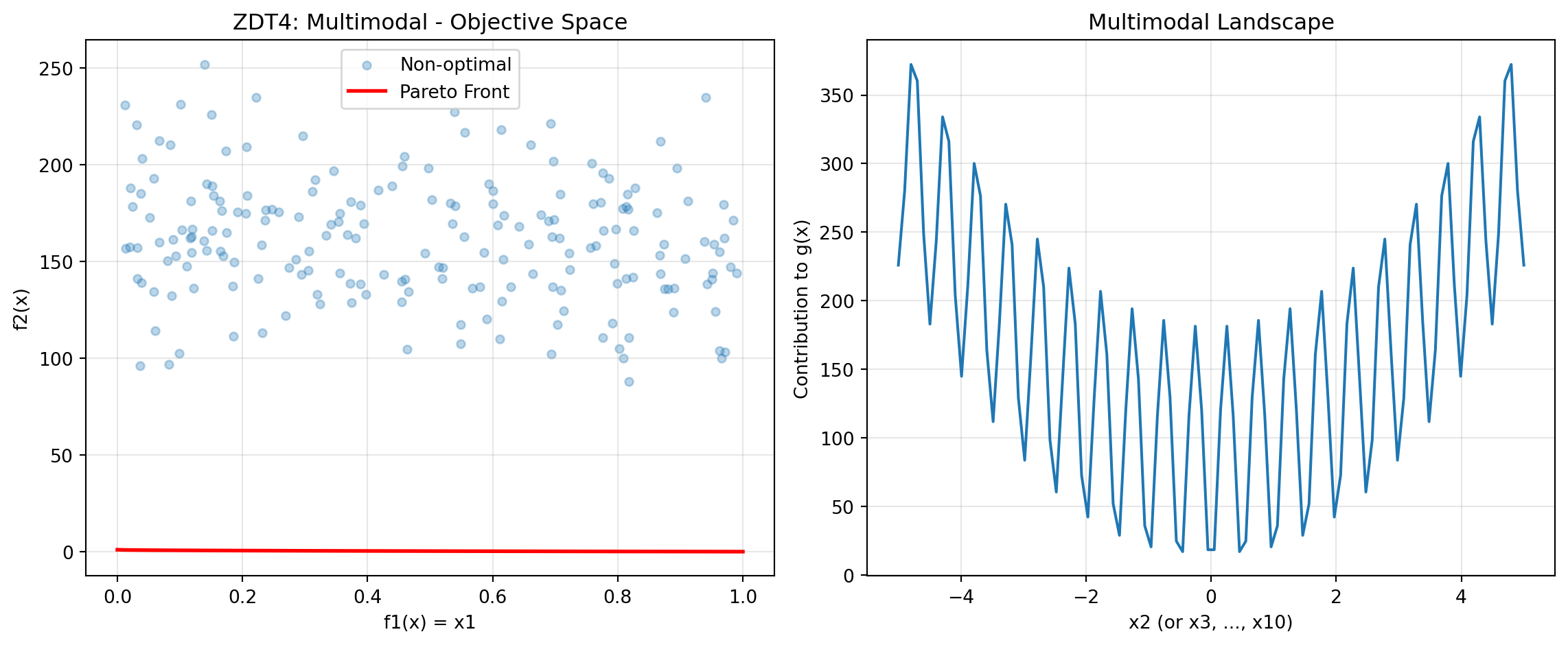

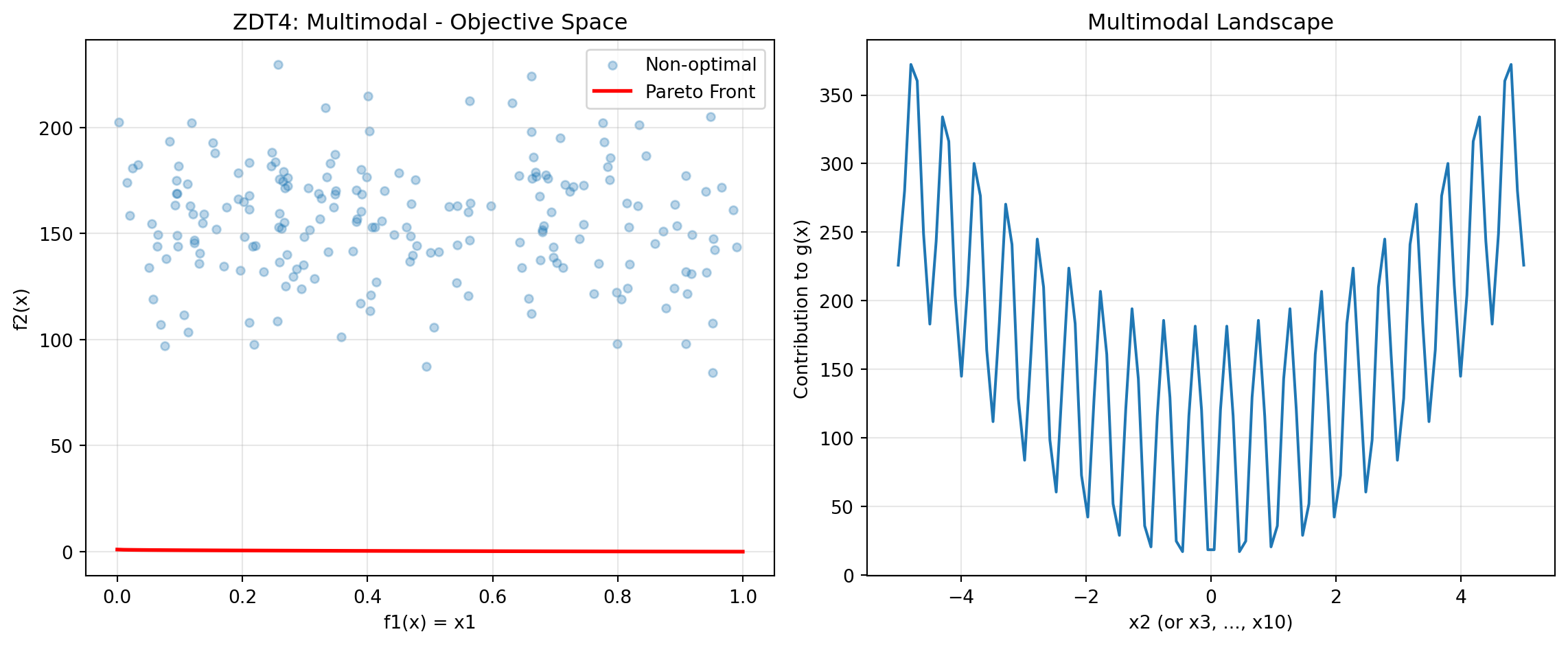

Figure 21.4: ZDT4 Multimodal Objective Space

print("ZDT4 Characteristics:")
print("- 21^9 local Pareto fronts")
print("- Tests global search capability")
print("- x1 in [0,1], x_i in [-5,5] for i=2,...,10")

ZDT4 Characteristics:
- 21^9 local Pareto fronts
- Tests global search capability
- x1 in [0,1], x_i in [-5,5] for i=2,...,10

21.6.6 Example 10: ZDT6 - Non-Uniform Density

ZDT6 has a non-uniform search space with low density of solutions near the Pareto front.

from spotoptim.function.mo import zdt6

# Generate Pareto front
X_pareto = np.column_stack([x1_range, np.zeros((n_points, 2))])
y_pareto = zdt6(X_pareto)

# Non-optimal points
y_non_optimal = zdt6(X_non_optimal)

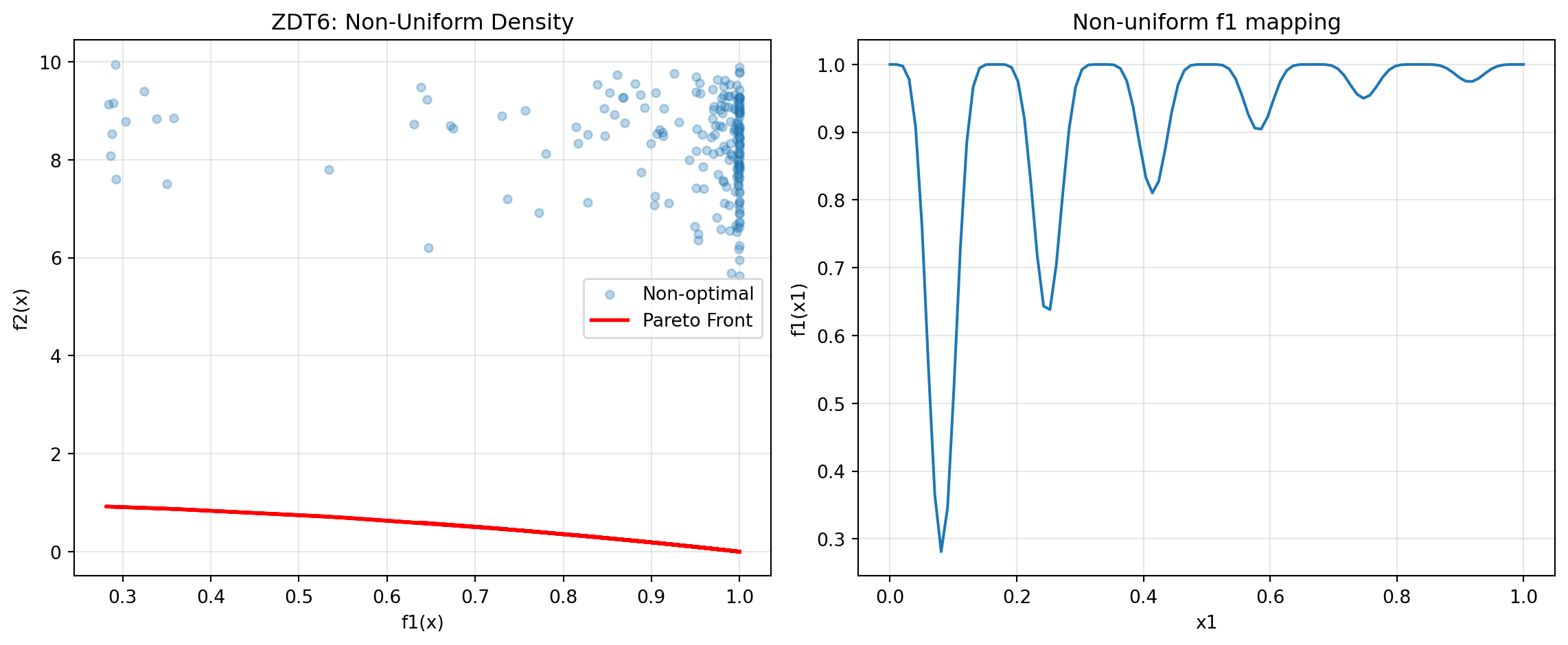

Figure 21.5 visualizes the Pareto front:

fig, (ax1, ax2) = plt.subplots(1, 2, figsize=(12, 5))

# Objective space
ax1.scatter(y_non_optimal[:, 0], y_non_optimal[:, 1],
           alpha=0.3, label='Non-optimal', s=20)
ax1.plot(y_pareto[:, 0], y_pareto[:, 1],
        'r-', linewidth=2, label='Pareto Front')
ax1.set_xlabel('f1(x)')
ax1.set_ylabel('f2(x)')
ax1.set_title('ZDT6: Non-Uniform Density')
ax1.legend()
ax1.grid(True, alpha=0.3)

# Show f1 non-uniformity
ax2.plot(x1_range, 1 - np.exp(-4 * x1_range) * (np.sin(6 * np.pi * x1_range)**6))
ax2.set_xlabel('x1')
ax2.set_ylabel('f1(x1)')
ax2.set_title('Non-uniform f1 mapping')
ax2.grid(True, alpha=0.3)

plt.tight_layout()
plt.show()

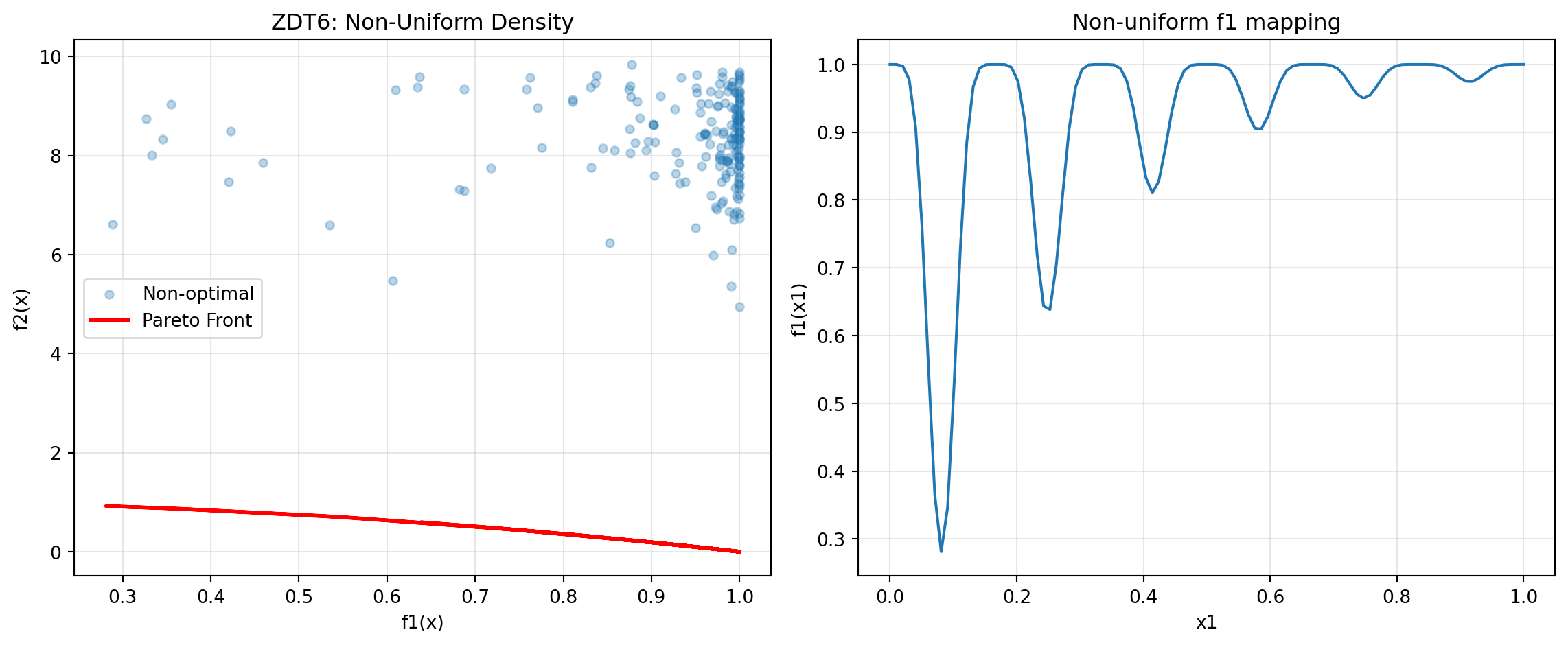

Figure 21.5: ZDT6 Non-Uniform Density

print("ZDT6 Characteristics:")
print("- Non-uniform density of Pareto optimal solutions")
print("- Low density near the Pareto front")
print("- Tests diversity maintenance")

ZDT6 Characteristics:
- Non-uniform density of Pareto optimal solutions
- Low density near the Pareto front
- Tests diversity maintenance

21.6.7 Example 11: DTLZ2 - Scalable Spherical Pareto Front

DTLZ2 is a scalable test problem with a concave spherical Pareto front.

from spotoptim.function.mo import dtlz2

# 3D visualization for 3 objectives
n_samples = 500
X_samples = np.random.rand(n_samples, 12)
y_samples = dtlz2(X_samples, n_obj=3)

# Generate Pareto optimal points (on unit sphere)
theta = np.linspace(0, np.pi/2, 30)
phi = np.linspace(0, np.pi/2, 30)
theta_grid, phi_grid = np.meshgrid(theta, phi)

f1 = np.cos(theta_grid) * np.cos(phi_grid)
f2 = np.cos(theta_grid) * np.sin(phi_grid)
f3 = np.sin(theta_grid)

Figure 21.6 visualizes the Pareto front:

fig = plt.figure(figsize=(10, 8))
ax = fig.add_subplot(111, projection='3d')

# Pareto front surface
ax.plot_surface(f1, f2, f3, alpha=0.3, color='red', label='Pareto Front')

# Sample points
colors = np.linalg.norm(y_samples, axis=1)
scatter = ax.scatter(y_samples[:, 0], y_samples[:, 1], y_samples[:, 2],
                    c=colors, cmap='viridis', alpha=0.5, s=10)

ax.set_xlabel('f1(x)')
ax.set_ylabel('f2(x)')
ax.set_zlabel('f3(x)')
ax.set_title('DTLZ2: Spherical Pareto Front (3 objectives)')
plt.colorbar(scatter, label='Distance from origin')
plt.tight_layout()
plt.show()

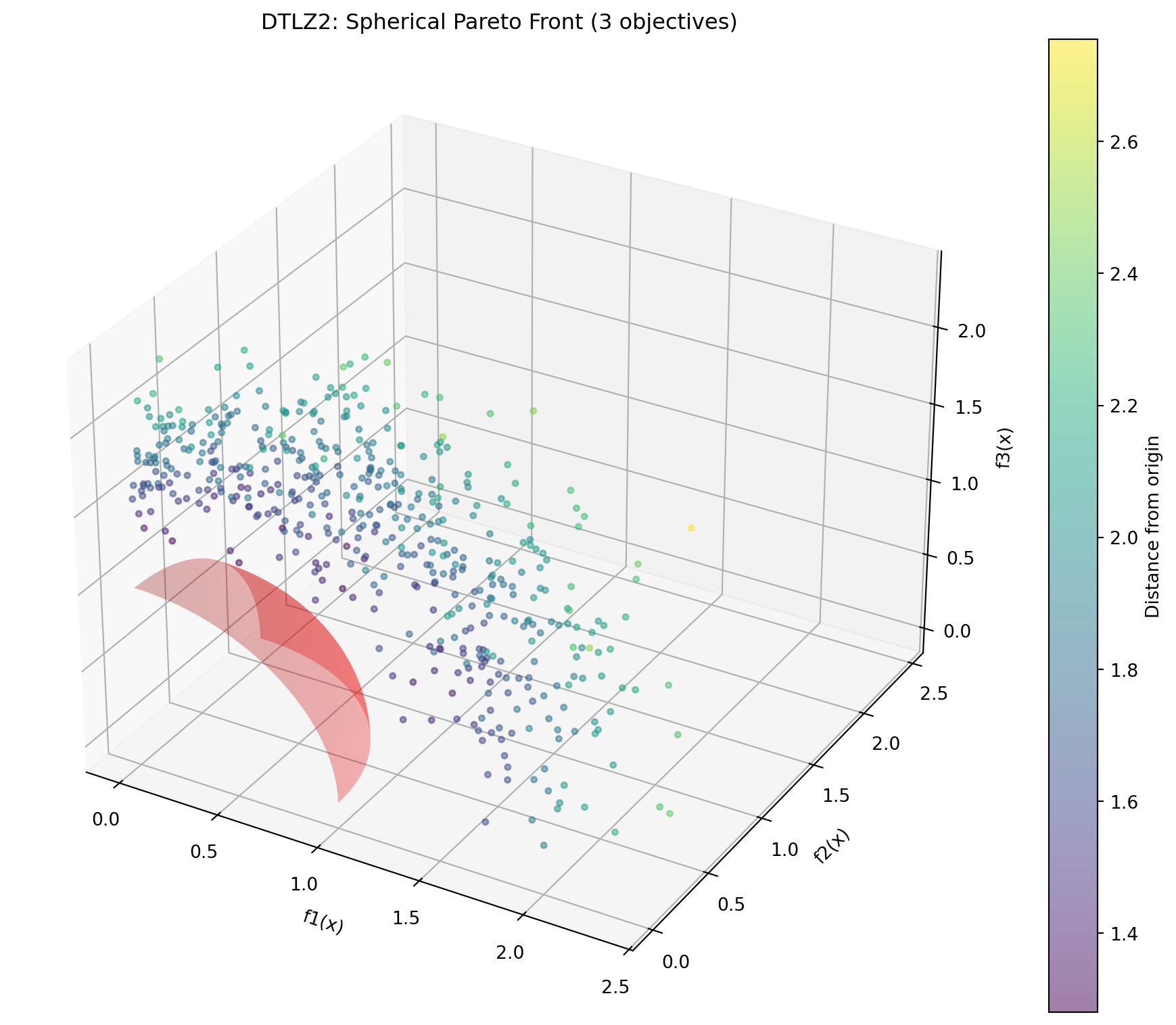

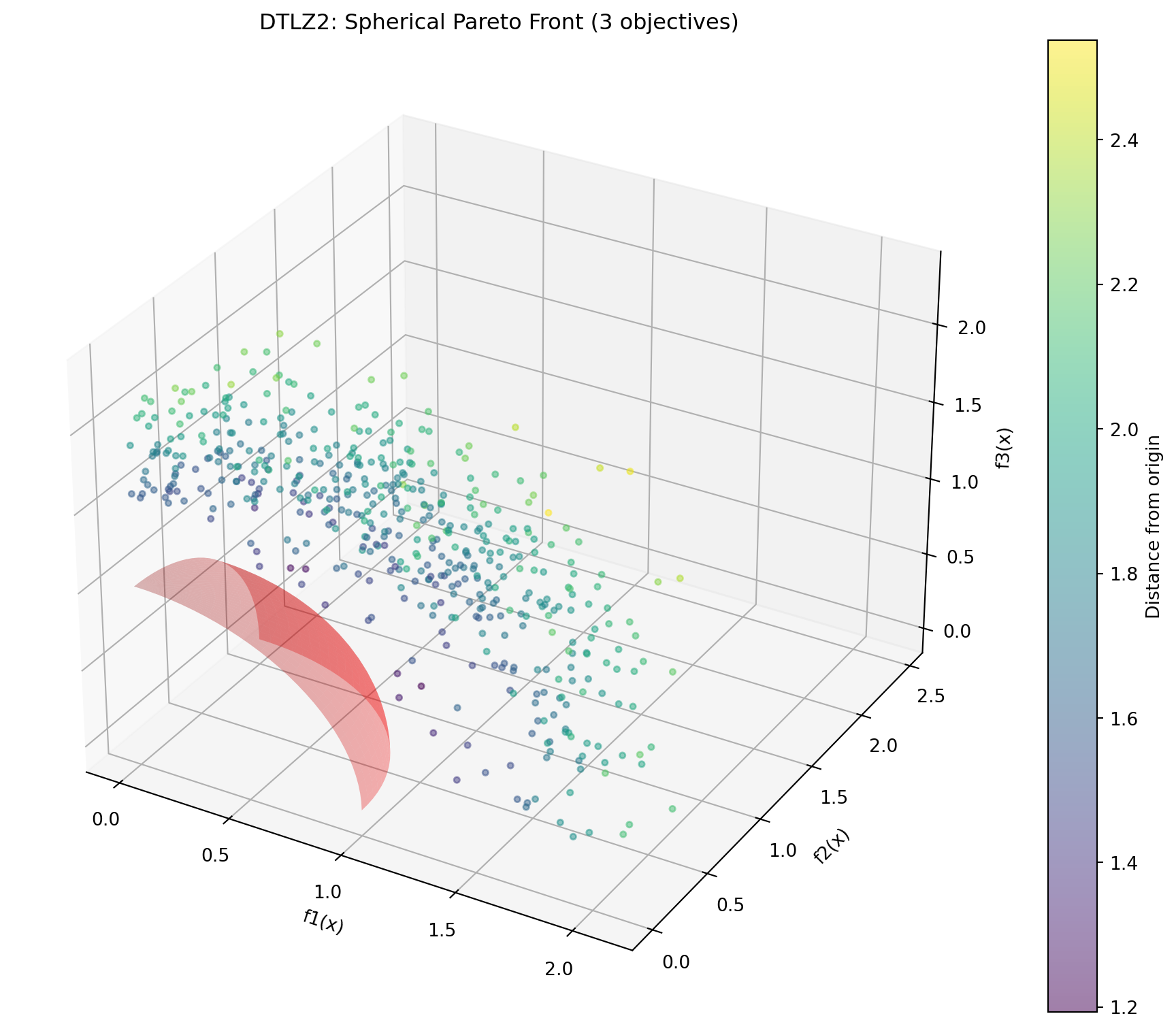

Figure 21.6: DTLZ2 Spherical Pareto Front (3 objectives)

print("DTLZ2 Characteristics:")
print("- Scalable number of objectives")
print("- Pareto front is unit sphere: Σf_i² = 1")
print("- Concave, unimodal")
print(f"- Sample: sum of squares = {np.sum(y_samples[0]**2):.4f}")

DTLZ2 Characteristics:
- Scalable number of objectives
- Pareto front is unit sphere: Σf_i² = 1
- Concave, unimodal
- Sample: sum of squares = 4.0966

Optimize DTLZ2 with 3 objectives:

def weighted_sum_3obj(y_mo):
    """Equal weighting for 3 objectives."""
    return np.mean(y_mo, axis=1)

optimizer = SpotOptim(
    fun=lambda X: dtlz2(X, n_obj=3),
    bounds=[(0, 1)] * 12,  # 12 variables for 3 objectives
    max_iter=50,
    n_initial=25,
    fun_mo2so=weighted_sum_3obj,
    seed=42,
    max_surrogate_points=30
)

result = optimizer.optimize()

# Evaluate
y_best = dtlz2(result.x.reshape(1, -1), n_obj=3)
print(f"\nOptimization Result:")
print(f"f1 = {y_best[0, 0]:.4f}, f2 = {y_best[0, 1]:.4f}, f3 = {y_best[0, 2]:.4f}")
print(f"Sum of squares: {np.sum(y_best[0]**2):.4f} (should be ~1.0)")

Optimization Result:
f1 = 0.0000, f2 = 0.0000, f3 = 1.3418
Sum of squares: 1.8005 (should be ~1.0)

21.6.8 Example 12: Schaffer N1 - Simple Bi-Objective

Schaffer N1 is one of the earliest and simplest multi-objective test functions.

from spotoptim.function.mo import schaffer_n1

# Generate data
x_range = np.linspace(-10, 10, 200).reshape(-1, 1)
y_schaffer = schaffer_n1(x_range)

# Pareto optimal range [0, 2]
x_pareto = np.linspace(0, 2, 100).reshape(-1, 1)
y_pareto = schaffer_n1(x_pareto)

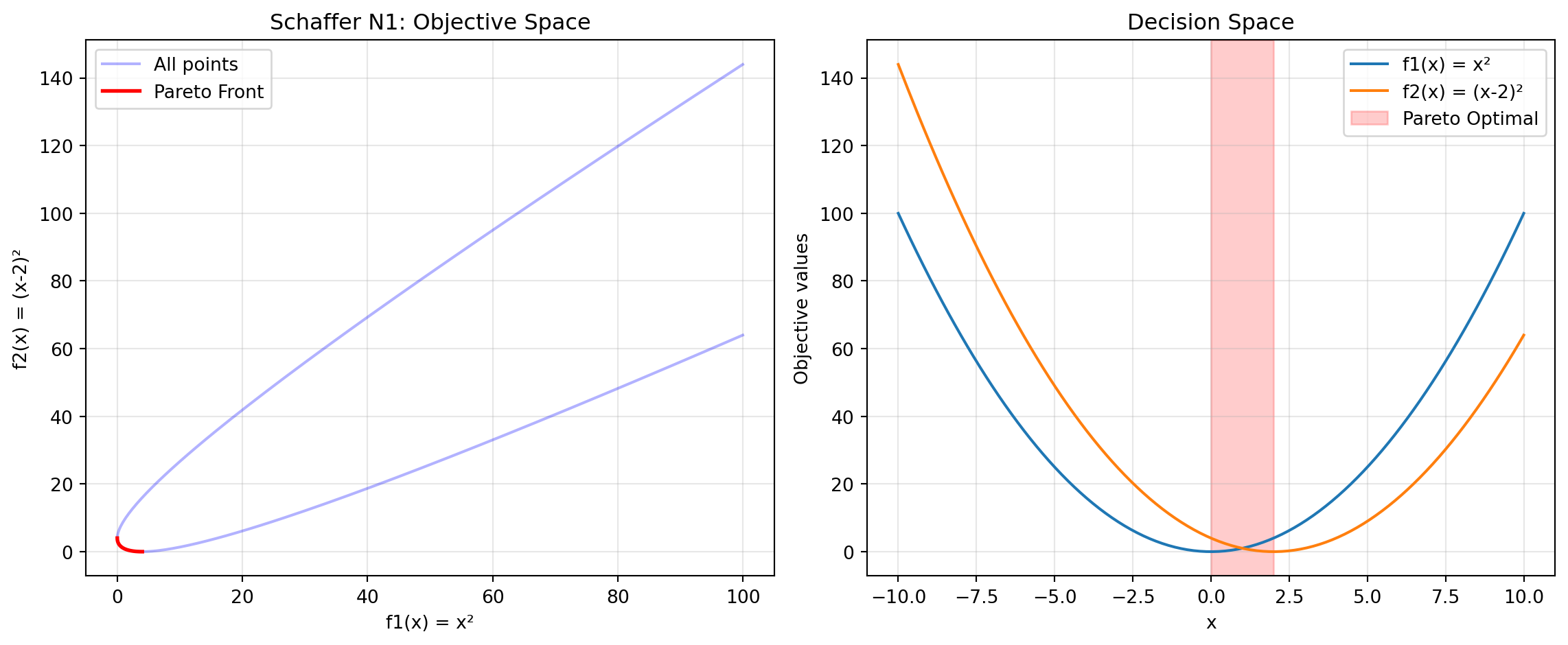

Figure 21.7 visualizes the Pareto front:

fig, (ax1, ax2) = plt.subplots(1, 2, figsize=(12, 5))

# Objective space
ax1.plot(y_schaffer[:, 0], y_schaffer[:, 1], 'b-', alpha=0.3, label='All points')
ax1.plot(y_pareto[:, 0], y_pareto[:, 1], 'r-', linewidth=2, label='Pareto Front')
ax1.set_xlabel('f1(x) = x²')
ax1.set_ylabel('f2(x) = (x-2)²')
ax1.set_title('Schaffer N1: Objective Space')
ax1.legend()
ax1.grid(True, alpha=0.3)

# Decision space
ax2.plot(x_range, y_schaffer[:, 0], label='f1(x) = x²')
ax2.plot(x_range, y_schaffer[:, 1], label='f2(x) = (x-2)²')
ax2.axvspan(0, 2, alpha=0.2, color='red', label='Pareto Optimal')
ax2.set_xlabel('x')
ax2.set_ylabel('Objective values')
ax2.set_title('Decision Space')
ax2.legend()
ax2.grid(True, alpha=0.3)

plt.tight_layout()
plt.show()

Figure 21.7: Schaffer N1 Objective Space

print("Schaffer N1 Characteristics:")
print("- Simplest multi-objective function")
print("- 1D decision variable")
print("- Pareto optimal: x ∈ [0, 2]")
print("- Convex Pareto front")

Schaffer N1 Characteristics:
- Simplest multi-objective function
- 1D decision variable
- Pareto optimal: x ∈ [0, 2]
- Convex Pareto front

21.6.9 Example 13: Fonseca-Fleming - Symmetric Concave Front

Fonseca-Fleming is a classical bi-objective problem with a concave Pareto front. It is defined for 2 to 10 decision variables as follows: \[ f_1(x) = 1 - \exp\left(-\sum_{i=1}^{n} (x_i - \frac{1}{\sqrt{n}})^2\right) f_2(x) = 1 - \exp\left(-\sum_{i=1}^{n} (x_i + \frac{1}{\sqrt{n}})^2\right), \] where \(x_i \in [-2, 2]\). The Pareto optimal solutions satisfy: \[ \sum_{i=1}^{n} x_i^2 = \frac{1}{n}. \]

from spotoptim.function.mo import fonseca_fleming

# Generate data for 2D
n_grid = 50
x1_ff = np.linspace(-2, 2, n_grid)
x2_ff = np.linspace(-2, 2, n_grid)
X1_grid, X2_grid = np.meshgrid(x1_ff, x2_ff)

# Evaluate on grid
X_grid = np.column_stack([X1_grid.ravel(), X2_grid.ravel()])
y_grid = fonseca_fleming(X_grid)

# Pareto optimal points (approximately)
X_pareto_ff = np.linspace(-1/np.sqrt(2), 1/np.sqrt(2), 100)
X_pareto_2d = np.column_stack([X_pareto_ff, X_pareto_ff])
y_pareto_ff = fonseca_fleming(X_pareto_2d)

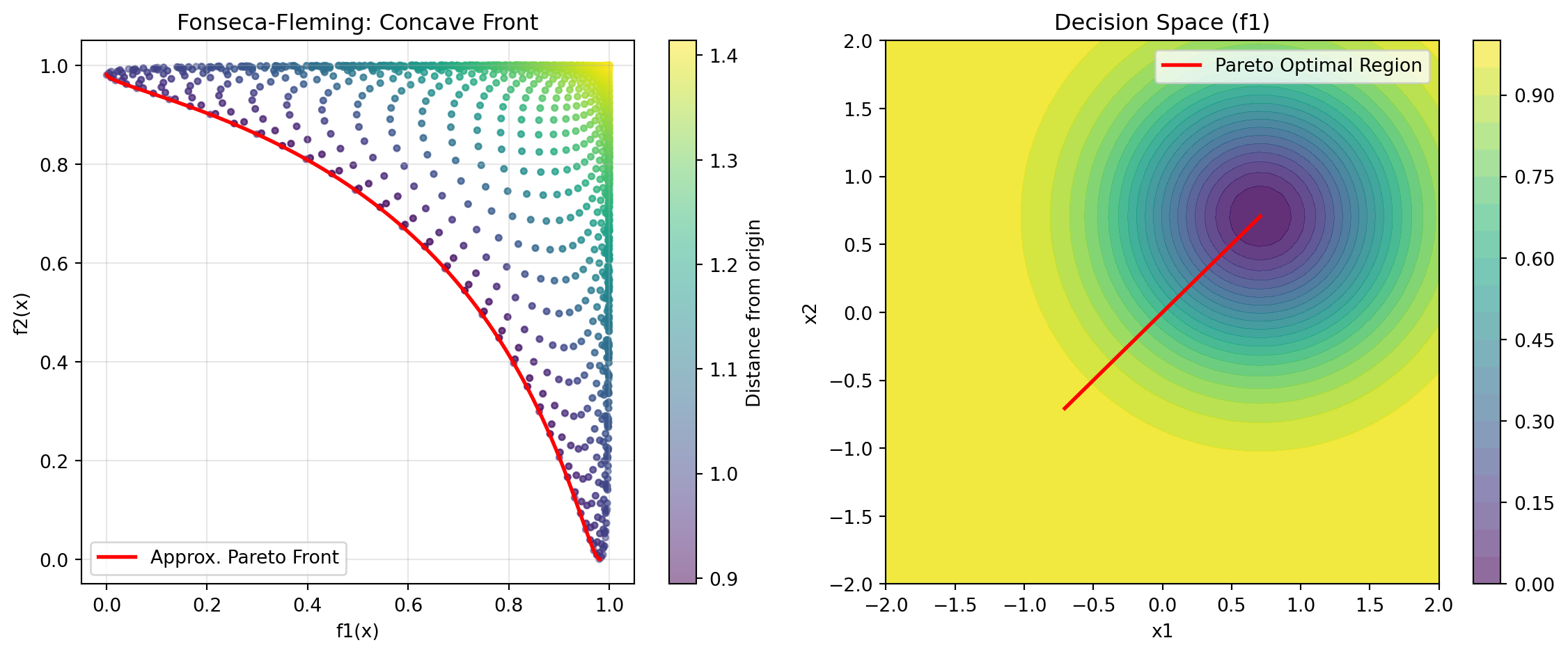

Figure 21.8 visualizes the Pareto front:

fig, (ax1, ax2) = plt.subplots(1, 2, figsize=(12, 5))

# Objective space
scatter = ax1.scatter(y_grid[:, 0], y_grid[:, 1],
                     c=np.linalg.norm(y_grid, axis=1),
                     cmap='viridis', alpha=0.5, s=10)
ax1.plot(y_pareto_ff[:, 0], y_pareto_ff[:, 1],
        'r-', linewidth=2, label='Approx. Pareto Front')
ax1.set_xlabel('f1(x)')
ax1.set_ylabel('f2(x)')
ax1.set_title('Fonseca-Fleming: Concave Front')
ax1.legend()
ax1.grid(True, alpha=0.3)
plt.colorbar(scatter, ax=ax1, label='Distance from origin')

# Decision space
ax2.contourf(X1_grid, X2_grid, y_grid[:, 0].reshape(n_grid, n_grid),
            levels=20, cmap='viridis', alpha=0.6)
ax2.plot(X_pareto_2d[:, 0], X_pareto_2d[:, 1],
        'r-', linewidth=2, label='Pareto Optimal Region')
ax2.set_xlabel('x1')
ax2.set_ylabel('x2')
ax2.set_title('Decision Space (f1)')
ax2.legend()
plt.colorbar(ax2.contourf(X1_grid, X2_grid, y_grid[:, 0].reshape(n_grid, n_grid),
                          levels=20, cmap='viridis', alpha=0.6), ax=ax2)

plt.tight_layout()
plt.show()

Figure 21.8: Fonseca-Fleming Concave Front

print("Fonseca-Fleming Characteristics:")
print("- Concave Pareto front (minimization)")
print("- Symmetric problem")
print("- Scalable to higher dimensions")

Fonseca-Fleming Characteristics:
- Concave Pareto front (minimization)
- Symmetric problem
- Scalable to higher dimensions

21.7 Example 14: Kursawe - Non-Convex Disconnected Front

Optimize Kursawe with min-max scalarization:

from spotoptim.function.mo import kursawe
def min_max_kursawe(y_mo):
    """Minimize maximum objective (Chebyshev)."""
    return np.max(y_mo, axis=1)

optimizer = SpotOptim(
    fun=kursawe,
    bounds=[(-5, 5)] * 3,
    max_iter=50,
    n_initial=20,
    fun_mo2so=min_max_kursawe,
    seed=42,
    max_surrogate_points=30
)

result = optimizer.optimize()

y_best = kursawe(result.x.reshape(1, -1))
print(f"\nOptimization Result:")
print(f"Best x: {result.x}")
print(f"f1 = {y_best[0, 0]:.4f}, f2 = {y_best[0, 1]:.4f}")
print(f"Max objective: {max(y_best[0]):.4f}")

Optimization Result:
Best x: [-1.15499025 -1.13855253 -1.14991196]
f1 = -14.4650, f2 = -11.6191
Max objective: -11.6191

21.7.1 Comparison: Different Scalarization Strategies on ZDT1

Let’s compare how different scalarization strategies find different Pareto solutions:

scalarizations = {
    'First Objective': None,  # Default
    'Equal Weight': lambda y: 0.5 * y[:, 0] + 0.5 * y[:, 1],
    'Favor f1': lambda y: 0.8 * y[:, 0] + 0.2 * y[:, 1],
    'Favor f2': lambda y: 0.2 * y[:, 0] + 0.8 * y[:, 1],
    'Min-Max': lambda y: np.max(y, axis=1),
}

results = {}
for name, scalarization in scalarizations.items():
    opt = SpotOptim(
        fun=zdt1,
        bounds=[(0, 1)] * 30,
        max_iter=40,
        n_initial=15,
        fun_mo2so=scalarization,
        seed=42,
        verbose=0,
        max_surrogate_points=30
    )
    res = opt.optimize()
    y_res = zdt1(res.x.reshape(1, -1))
    results[name] = (res.x, y_res[0])

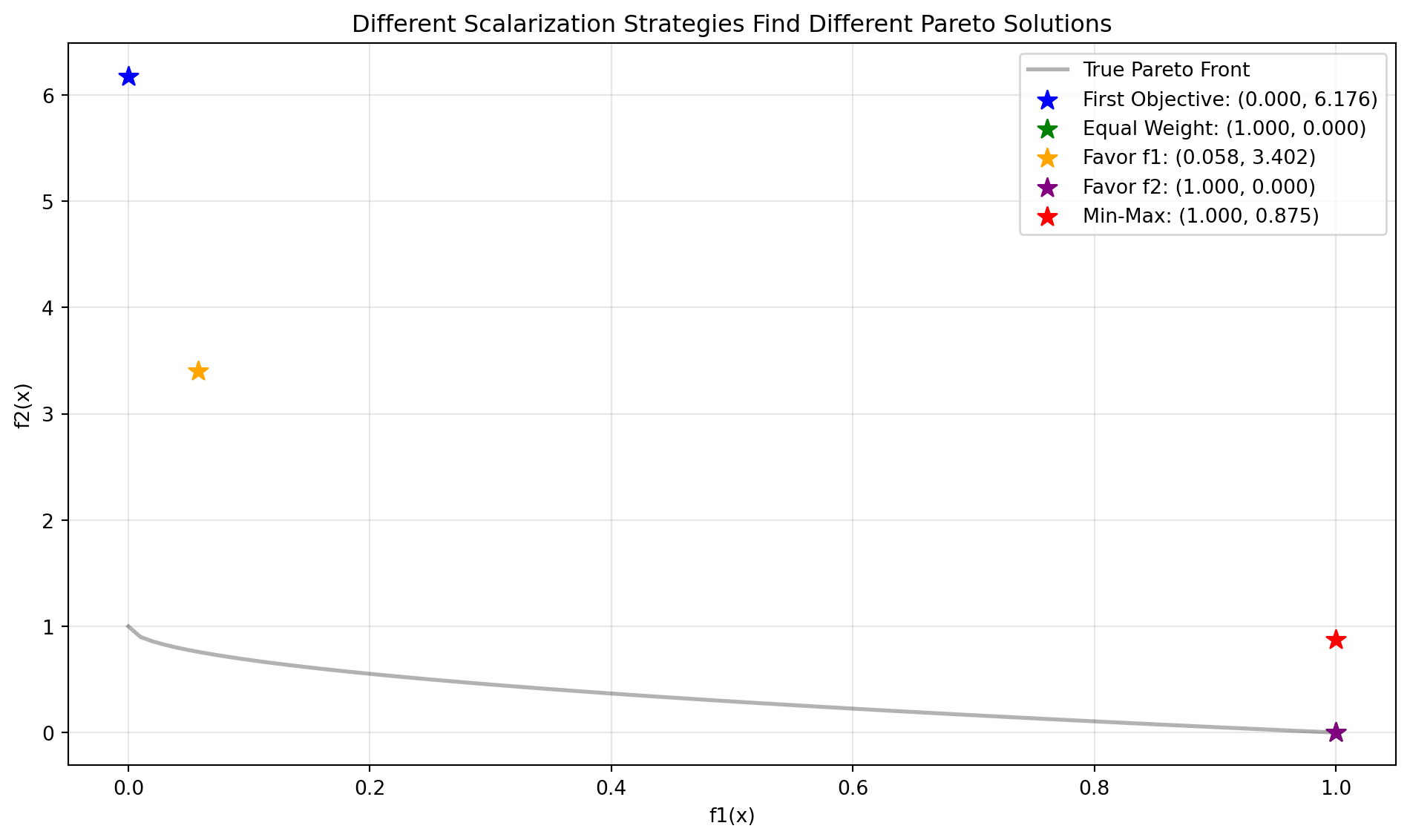

Figure 21.9 visualizes the results:

fig, ax = plt.subplots(figsize=(10, 6))

# Plot Pareto front
X_pareto = np.column_stack([x1_range, np.zeros((n_points, 29))])
y_pareto = zdt1(X_pareto)
ax.plot(y_pareto[:, 0], y_pareto[:, 1], 'k-', linewidth=2,
       label='True Pareto Front', alpha=0.3)

# Plot optimization results
colors = ['blue', 'green', 'orange', 'purple', 'red']
for (name, (x, y)), color in zip(results.items(), colors):
    ax.scatter(y[0], y[1], s=100, c=color, marker='*',
              label=f'{name}: ({y[0]:.3f}, {y[1]:.3f})', zorder=5)

ax.set_xlabel('f1(x)')
ax.set_ylabel('f2(x)')
ax.set_title('Different Scalarization Strategies Find Different Pareto Solutions')
ax.legend()
ax.grid(True, alpha=0.3)
plt.tight_layout()
plt.show()

print("\nComparison Results:")
for name, (x, y) in results.items():
    print(f"{name:20s}: f1={y[0]:.4f}, f2={y[1]:.4f}")

Figure 21.9

Comparison Results:
First Objective     : f1=0.0000, f2=6.1756
Equal Weight        : f1=1.0000, f2=0.0000
Favor f1            : f1=0.0514, f2=3.6282
Favor f2            : f1=1.0000, f2=0.0000
Min-Max             : f1=1.0000, f2=0.9069

21.8 A Simple Visualization Example

The mo_mm_desirability_function computes the negative combined desirability for a candidate point x. It predicts the objective values using the provided surrogate models, computes the Morris-Mitchell improvement if requested, and then calculates the overall desirability using the provided DOverall object. The function returns the negative desirability (for minimization) and the list of individual objective values. Consider the following example usage:

Generate X_base in the range [0,1] as input data and evaluate the two-objective maximization function mo_conv2_max.

A smooth, convex two-objective maximization problem on [0, 1]^2 using flipped versions of the minimization objectives:

\[\begin{align} f1(x, y) = 2 - (x^2 + y^2)\\ f2(x, y) = 2 - ((1 - x)^2 + (1 - y)^2) \end{align}\]

It has the following properties:

• Domain: \([0, 1]^2\)
• Objectives: maximize both \(f1\) and \(f2\)
• Ideal points: \((0, 0)\) for \(f1\) (gives \(f1=2\)); \((1, 1)\) for \(f2\) (gives \(f2=2\))
• Pareto set: line \(x = y\) in \([0, 1]\)
• Pareto front: convex quadratic trade-off \(f1 = 2 - 2t^2\), \(f2 = 2 - 2(1 - t)^2\), \(t \in [0, 1]\)

X_base = np.random.rand(500, 2)
y = mo_conv2_max(X_base)

The RandomForestRegressor models are fitted for each objective.

models = []
for i in range(y.shape[1]):
    model = RandomForestRegressor(n_estimators=n_estimators, random_state=random_state, max_depth=max_depth)
    model.fit(X_base, y[:, i])
    models.append(model)

# calculate base Morris-Mitchell stats
phi_base, J_base, d_base = mmphi_intensive(X_base, q=2, p=2)
print(f"phi_base: {phi_base}, J_base: {J_base}, d_base: {d_base}")

phi_base: 6.212013258255464, J_base: [1 1 1 ... 1 1 1], d_base: [0.00133909 0.00224301 0.00243956 ... 1.32508419 1.3359148  1.338386  ]

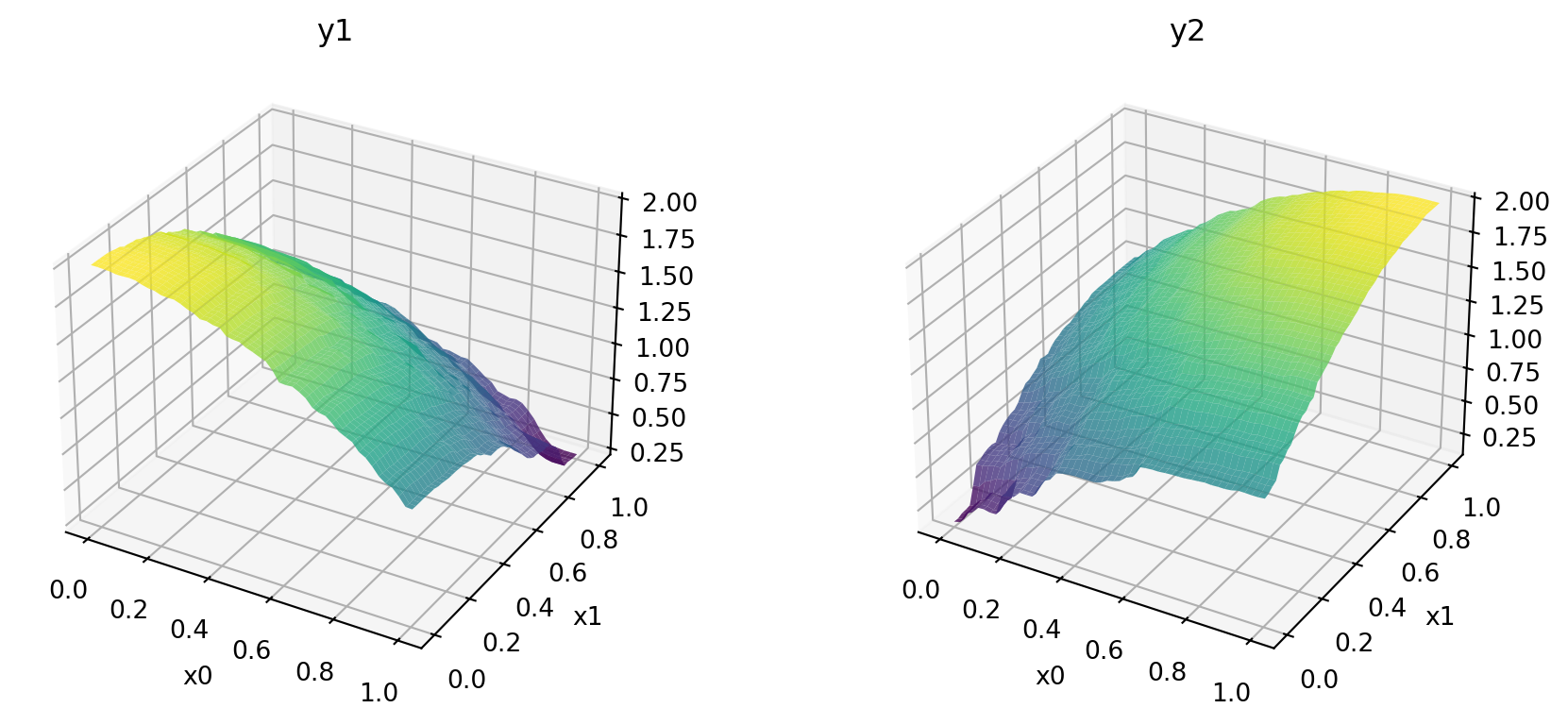

Figure 21.10 shows the surfaces of the two objectives using the fitted models.

x_min = 0
x_max = 1
combinations = [(0,1)]
target_names = ["y1", "y2"]

mo_xy_surface(models, bounds=[(x_min, x_max), (x_min, x_max)], target_names=target_names)

Figure 21.10: Surfaces of the two objectives of the mo_conv2_max function

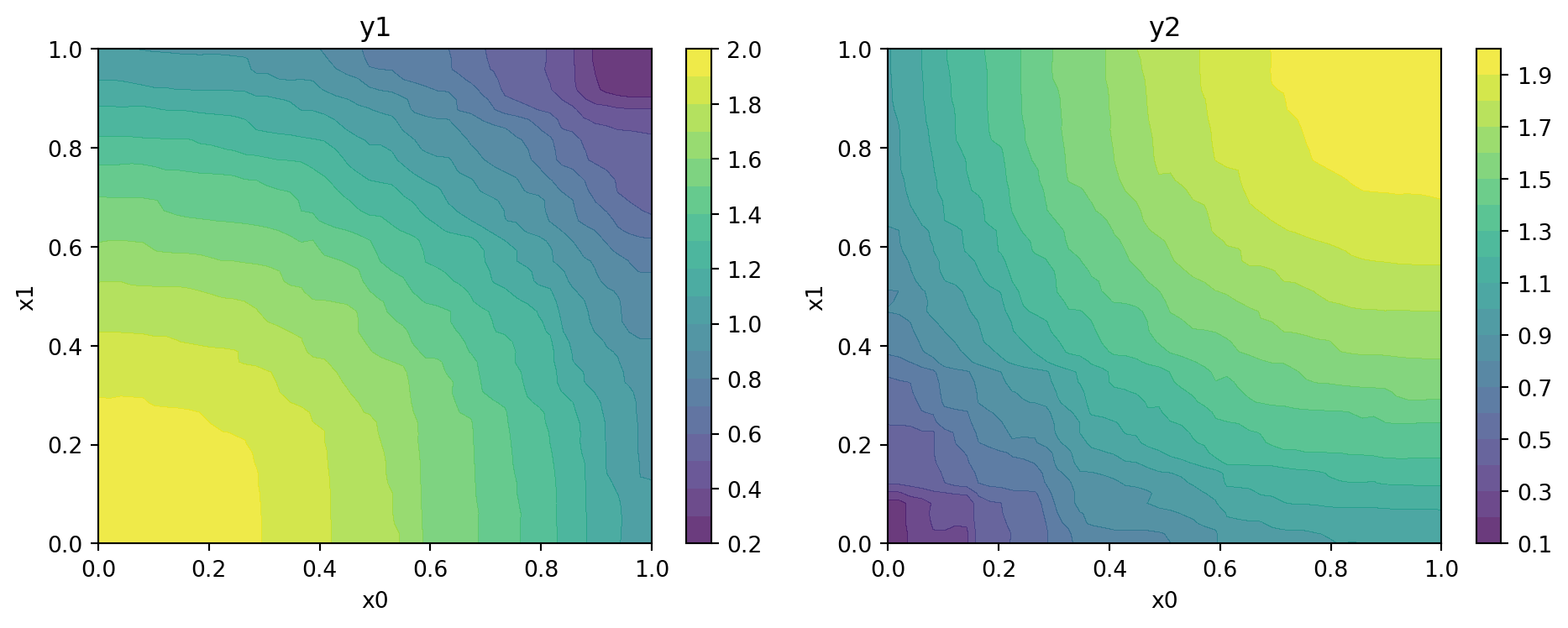

Figure 21.11 shows the contours of the two objectives using the fitted models.

x_min = 0
x_max = 1
mo_xy_contour(models, bounds=[(x_min, x_max), (x_min, x_max)], target_names=target_names)

Figure 21.11: Contours of the two objectives of the mo_conv2_max function

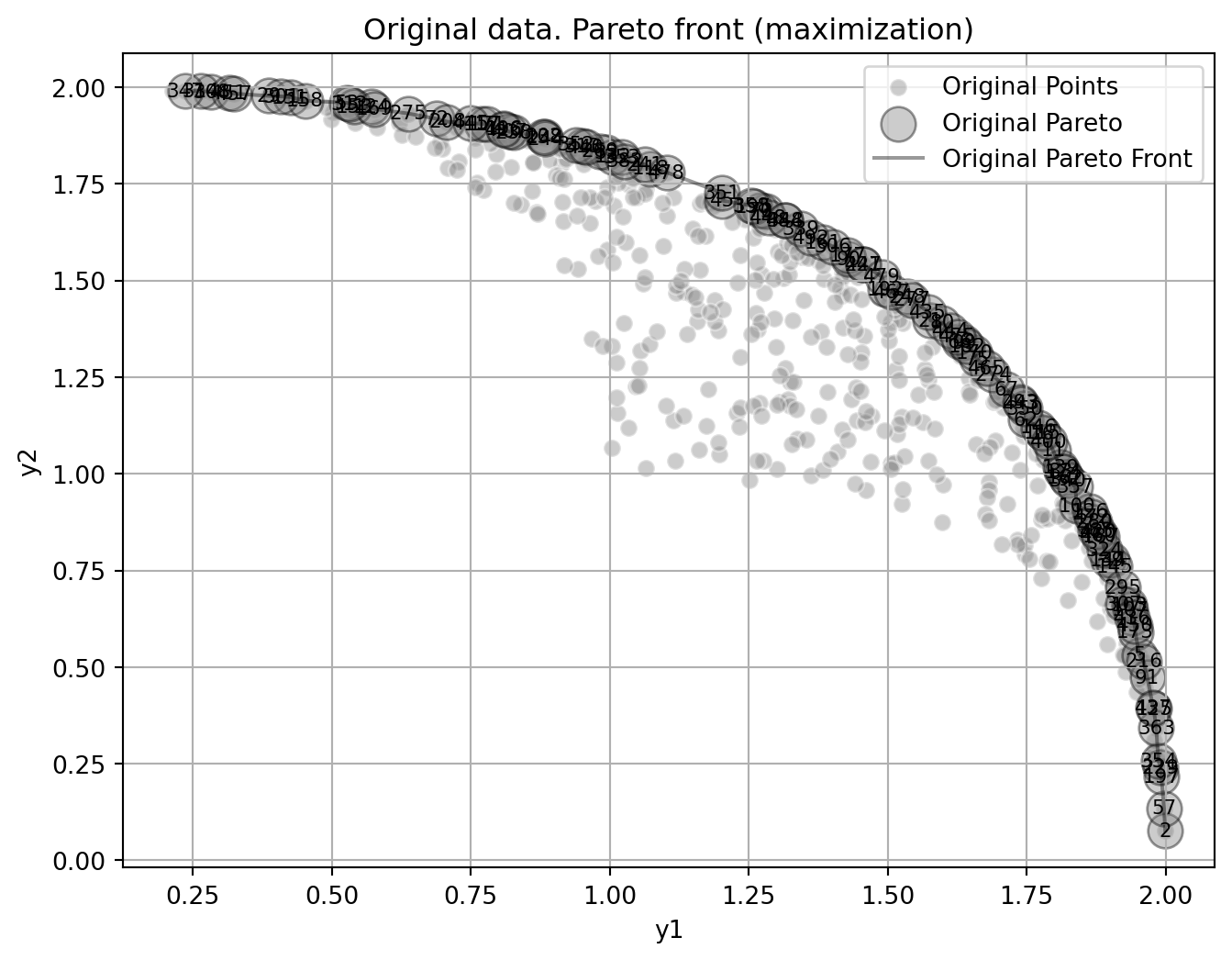

Figure 21.12 shows the Pareto front of the original data.

plot_mo(y_orig=y, target_names=target_names, combinations=combinations, pareto="max", pareto_front_orig=True, title="Original data. Pareto front (maximization)", pareto_label=True)

Figure 21.12: Pareto front of the original data

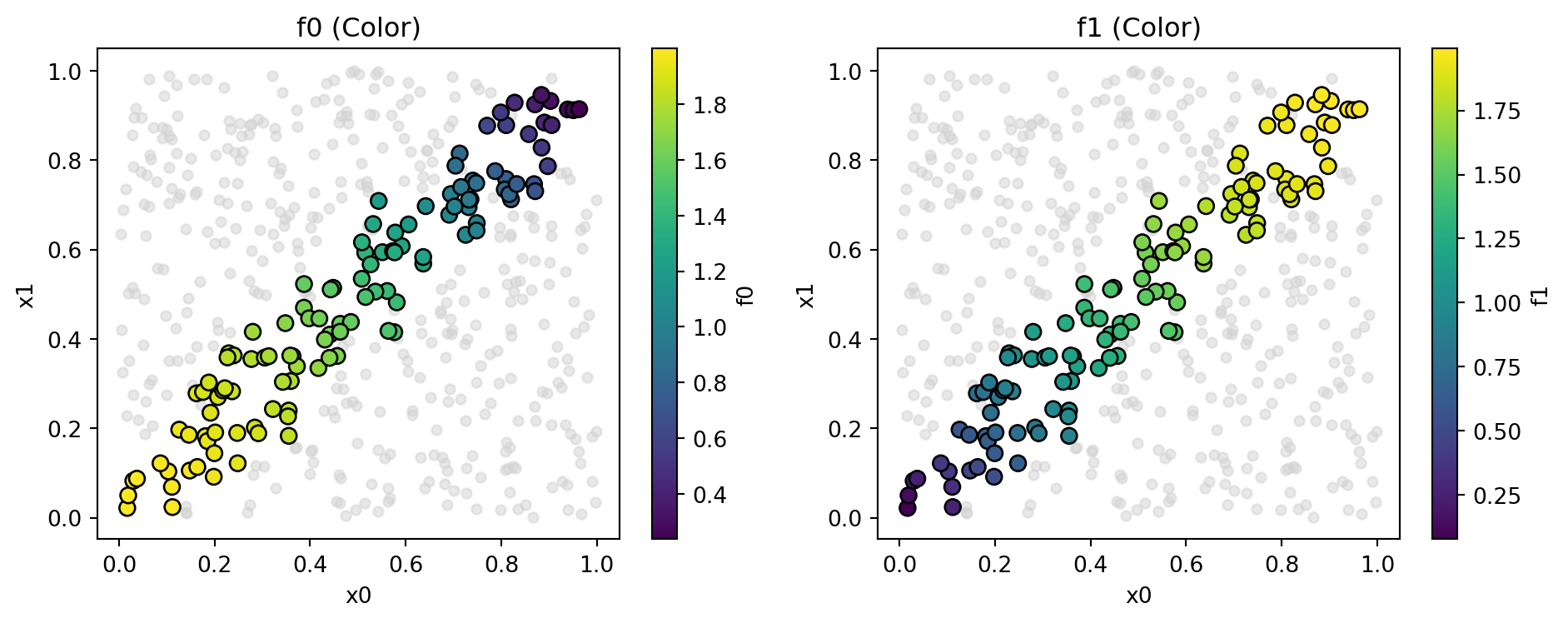

Figure 21.13 visualizes the Pareto-optimal points, i.e., the points in the input space that correspond to the Pareto front:

mo_pareto_optx_plot(X=X_base, Y=y, minimize=False)

Figure 21.13: Pareto-optimal points in the input space

Compute desirability functions for each objective:

d_funcs = []
for i in range(y.shape[1]):
    d_func = DMax(low=np.min(y[:, i]), high=np.max(y[:, i]))
    d_funcs.append(d_func)

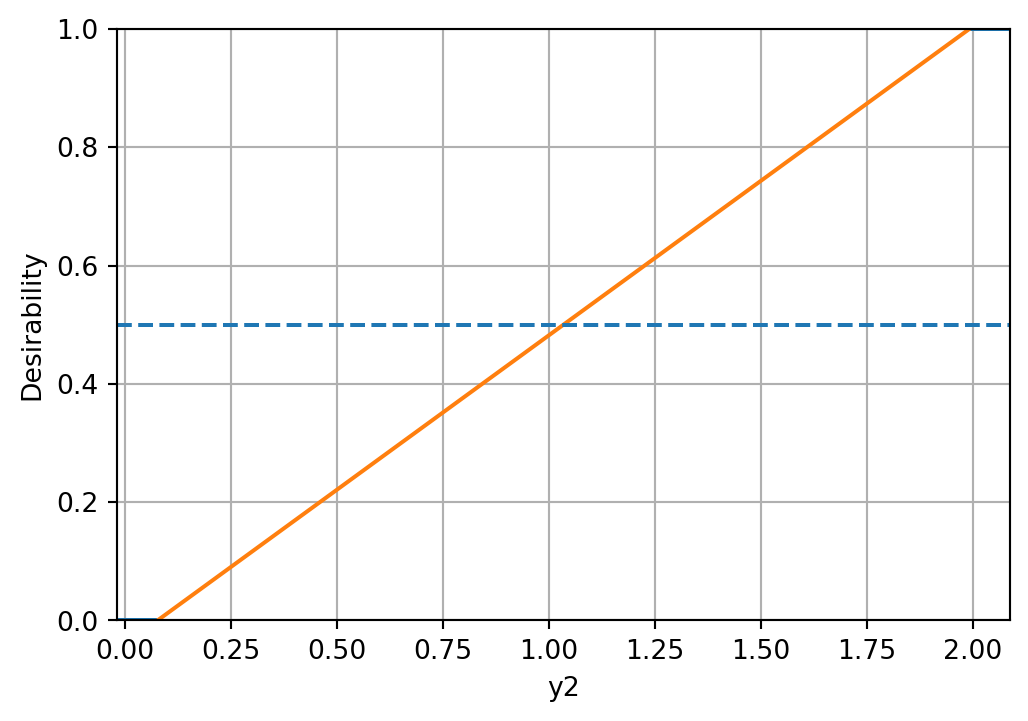

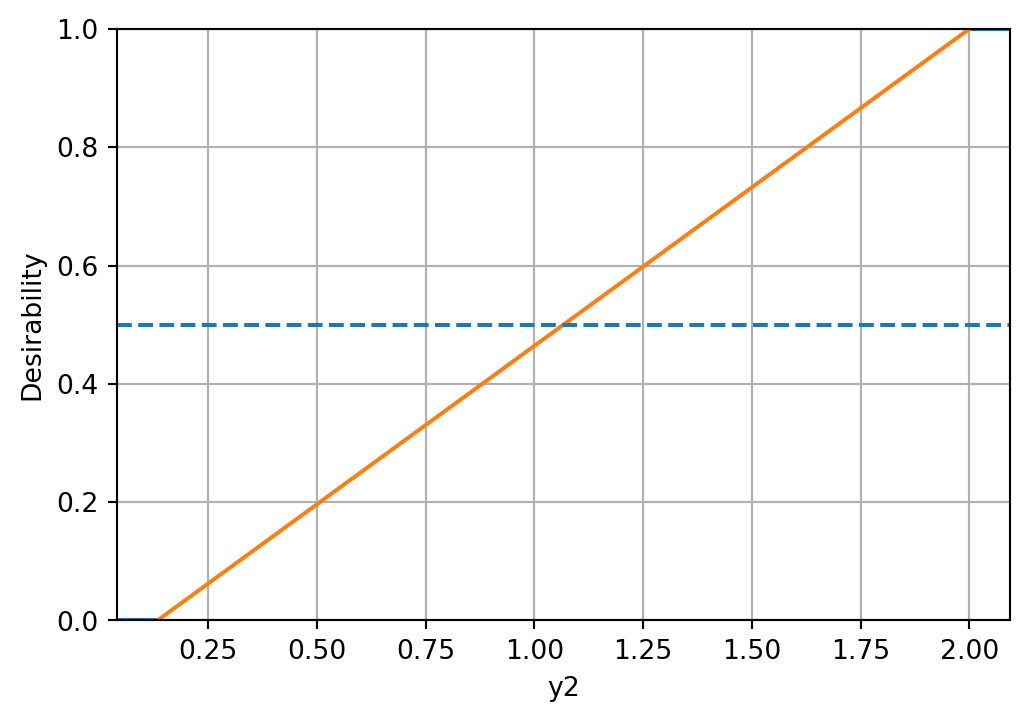

The desirability functions can be visualized as follows:

d_funcs[0].plot(xlabel=target_names[0], figsize=(6,4))
d_funcs[1].plot(xlabel=target_names[1], figsize=(6,4))

(a) Desirability functions of the mo_conv2_max function

(b)

Figure 21.14

The minimal expected improvement of the Morris-Mitchell criterion is defined as 1 percent of the base value, and the maximal expected improvement as 10 percent of the base value. Then, the desirability function for Morris-Mitchell objective can be defined as follows:

# imp_min = phi_base * 0.01
# imp_max = phi_base * 0.1

# d_mm = DMax(low=imp_min, high=imp_max)
# d_mm.plot()

Combine into overall desirability

# D_overall = DOverall(*d_funcs, d_mm)
D_overall = DOverall(*d_funcs)

Now we can call the mo_mm_desirability_function with a test point:

x_test = np.array([0.5, 0.5])  # Example test point
neg_D, objectives = mo_mm_desirability_function(x_test, models, X_base, J_base, d_base, phi_base, D_overall, mm_objective=False)
print(f"Negative Desirability: {neg_D}")
print(f"Objectives: {objectives}")

Negative Desirability: -0.7374994411771443
Objectives: [np.float64(1.4906734308429819), np.float64(1.5123762382740051)]

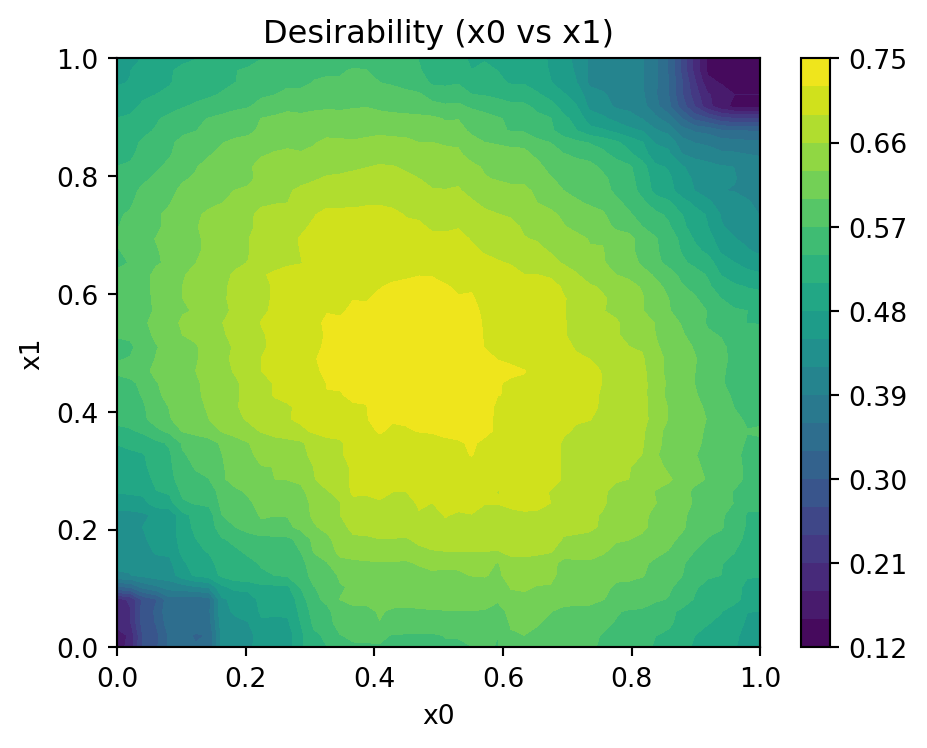

mo_xy_desirability_plot(models, bounds=[(x_min, x_max), (x_min, x_max)], X_base=X_base, J_base=J_base, d_base=d_base, phi_base=phi_base, D_overall=D_overall, mm_objective=False)

Desirability function for multi-objective optimization

21.9 Jupyter Notebook

Note

• The Jupyter-Notebook of this chapter is available on GitHub in the Sequential Parameter Optimization Cookbook Repository
